Reliable power is critical in professional video, broadcast and live workflows. As cameras and on‑set accessories evolve, battery systems need to deliver greater efficiency, faster turnaround and flexible outputs. The IDX SB‑U98 Battery Charger Kit answers that need by bundling two SB‑U98PD batteries with the UC‑PD2 dual charger—a matched, modern power solution for BP‑U style camera systems.
Designed for Sony BP‑U Style Camera Systems
The SB‑U98PD is engineered for cameras and accessories using the Sony BP‑U form factor (e.g., FX9/FX6, FS7/FS5, PXW/PMW series), so it drops into established ENG and corporate video workflows with no adapters.
USB‑C Power Delivery for Modern Accessories
Beyond camera power, today’s rigs lean on USB‑powered devices—field monitors, wireless video, tablets and comms. The SB‑U98PD adds USB‑C Power Delivery (PD) I/O (up to 45W profiles) and a D‑Tap output (up to 70W), allowing one battery to power your camera and critical accessories or top up devices directly via USB‑C.
Efficient Dual Charging with the IDX UC‑PD2
The included UC‑PD2 charges two batteries simultaneously and supports USB‑C PD up to 100W (single port) / 65W (dual)—excellent for fast turnarounds on location or in the studio. It also doubles as a compact travel power supply for other PD devices
Optimised for Professional Workflows
Integrated protection against over‑charge, over‑discharge and over‑current for professional reliability.
Runtime in the 96–98Wh class (model dependent) comparable to OEM BP‑U batteries, ideal for long‑form or multi‑camera days.
Improved viewfinder reporting on compatible Sony cameras plus a 4‑LED gauge for quick checks on the pack itself.
Technical Comparison: IDX SB‑U98PD vs Standard Sony BP‑U Batteries
While Sony BP‑U batteries remain a trusted baseline, the SB‑U98PD extends capability with multi‑role outputs and PD charging. Here’s how they compare.
Capacity & Electrical Performance
| Specification | IDX SB‑U98PD | Sony BP‑U100 |
|---|---|---|
| Nominal Voltage | 14.4V DC | 14.4V DC |
| Capacity (Wh) | ~96–98Wh (series dependent) | 97Wh |
| Max Output Voltage | 16.8V DC | 16.4V DC |
| Mount | Sony BP‑U | Sony BP‑U |
Power Outputs & Accessory Support
This is where the SB‑U98PD clearly differentiates itself.

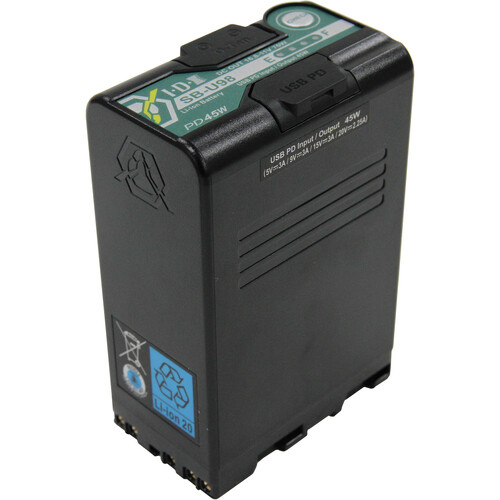

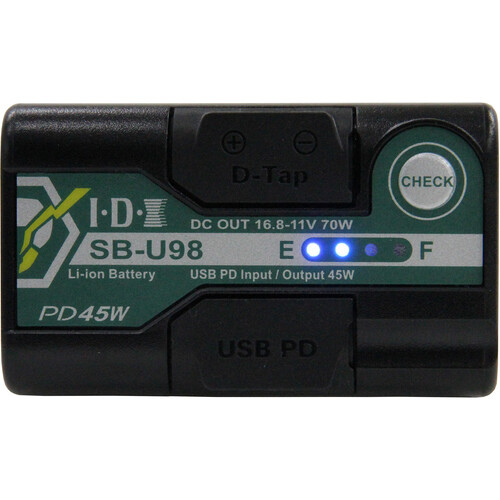

IDX SB‑U98PD
- D‑Tap output (up to 70W) for accessories such as monitors, wireless video, and audio receivers
- USB‑C Power Delivery input/output (up to 45W)
- Can power or charge USB‑C devices directly from the battery
- Can also be charged via USB‑C PD using compatible chargers
Standard Sony BP‑U Batteries
- No D‑Tap output
- No USB‑C output
- Require proprietary Sony chargers
- Designed primarily for camera‑only power
The SB‑U98PD enhances on‑set efficiency by allowing a single battery to power both the camera and accessories simultaneously, reducing rig complexity and eliminating the need for separate power banks, while also providing flexible charging options through USB‑C PD and traditional methods. At the same time, both the SB‑U98PD and standard BP‑U batteries communicate status to compatible Sony cameras and feature on‑pack LED gauges, with the SB‑U98PD offering improved remaining‑time accuracy through updated firmware along with integrated over‑charge, over‑discharge and over‑current protection for added operational safety.
A Cost‑Effective, Ready‑to‑Work Bundle
Buying the kit ensures known compatibility, dual‑bay charging out of the box and better value than piecing together batteries and chargers separately—ideal for rental fleets, live teams and corporate crews standardising their power platform.
Available Now from John Barry Sales
John Barry supplies professional production equipment with local expertise and support. The IDX SB‑U98 Battery Charger Kit is in stock and ready to deploy in your workflow.
