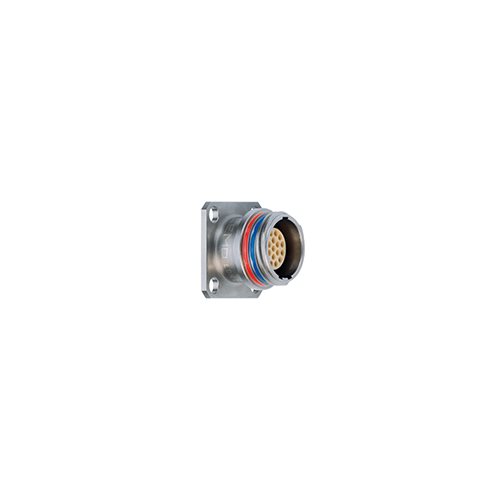

LEMO EDN.1M 8 Pin Panel Socket Square Flange
Press and move to zoom
Mouse over image to zoom
Click to Enlarge

Description

LEMO EDN.1M.308.XLM Series Panel Socket – Engineered for Extreme Conditions

Looking for a high-performance connector that thrives in the harshest environments? The LEMO EDN.1M.308.XLM Series Panel Socket is purpose-built for reliability, durability, and secure connectivity in mission-critical applications.

Top Features of the EDN.1M.308.XLM Panel Socket

  • Rugged Construction: Designed to withstand extreme conditions in industries like motorsport, defence, aerospace, and security.
  • Secure Ratchet Coupling: Prevents accidental disconnections, ensuring stable and reliable connections even under vibration or impact.
  • Flexible Keying Options: Multiple keying configurations support diverse system requirements and prevent mismating.

Perfect for Demanding Applications

  • Mission-Critical Systems: When failure is not an option, rely on LEMO’s proven engineering for uninterrupted performance.
  • Harsh Environments: Built to perform in challenging settings—from racetracks to military operations.
  • High-Stakes Connectivity: Ideal for transmitting sensitive data or powering high-demand equipment with confidence.

Why Choose LEMO?
With decades of expertise in precision connectivity, LEMO connectors are trusted worldwide for their uncompromising quality and performance in the most demanding industries.

Features

Specs

Specifications

BrandLEMO
Series1M
GenderPanel Socket
Contacts8
Contact platingGold
Rated current5 A
Test voltage KV ms Contact to Contact
1.3
IP ratingIP68 (mated)
Operating temp-55 °C to +200 °C
ComplianceRoHS

Accessories

Accessories visible on product image are not included

Shipping

Please be aware that John Barry has multiple warehouse locations in different states.

If you wish to purchase in store, to avoid disappointment, please confirm the availability of the product at your local John Barry prior to visiting.

Alternatively, orders placed online by 2pm AEST are typically dispatched same day, if ordered online.

If your product is on backorder, please contact us for an ETA.

Shipping is done via Startrack Express or Australia Post eParcel service and tracking advice will be provided once shipped.

For more information, please visit our Shipping Policy.

Warranty

John Barry Sales offers the same the warranty conditions as scheduled by the product manufacturer.

Should you have any questions regarding our equipment warranty conditions, please contact us

Returns & Refunds

John Barry will happily exchange a product sold to you that does not match the description on our website, or if the product is not of an acceptable quality or condition for use.

John Barry reserves the right under Australian Consumer Law to refuse a request for an exchange or refund on all final sale items, if you have misused/mishandled the product, or if you have simply changed your mind. Please visit our Refunds & Returns policy page for further information.

LEMO EDN.1M 8 Pin Panel Socket Square Flange

LEMO Connectors

Product code : LEM.EDN1M308XLM

$ 122.54 /Each
  • Availability: Out of Stock Call for a delivery estimate
    • Each
  • Tell a Friend
