Electrical Configuration

Contact Termination Low voltage

Crimp

Insert configuration value

MO/M05 - 5 Low Voltage

Insulator

L: PEEK (UL 94 / V-0/1.5)

Rated current

4.5 A

Vtest (contact-contact)

2000 V (DC)

Vtest (contact-shell)

n.a.

Max. Stranded Conductor

0.616 mm^2 (AWG 20)

Air clearance

1.17 mm

Creepage distance

1.17 mm

Bucket Dia.

1.1

Contact Dia.

0.9

Number of contacts Low Voltage

5

Wire Size/AWG

24 - 20

Gender

Standard

Form & Material

Shell style / Model id

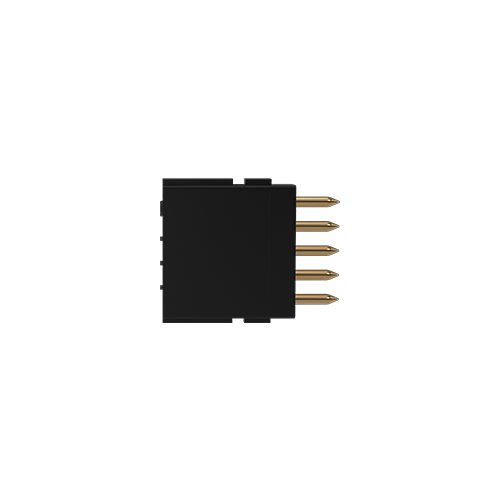

MOM - Module single Low Voltage with Male crimp contacts

Weight

2.51 g

Environment

Technical domain

Energy and Industrial, Medical, Test and Measurement

Environmental sealing (IP rating)

IP50
