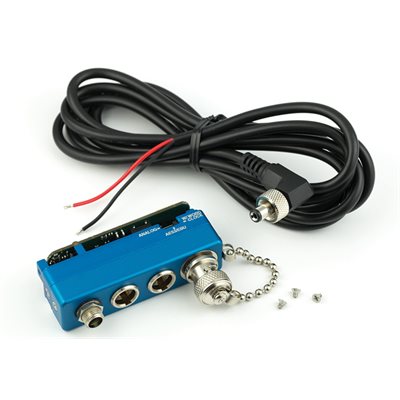

LECTROSONICS SR END PLATE WITH AES3 OUTPUTS

LECTROSONICS SR END PLATE WITH AES3 OUTPUTS

Product code : LEC.SRAES3


Bookmark and Share


$ 550.00
    • Each
    • Availability: Call for details

Tell a Friend

LECTROSONICS SR END PLATE WITH AES3 OUTPUTSAES3 digital audio at 48 kHz sampling with an internal clockAES3 digital audio with an external word clock at 44.1, 48 or 96 kHz samplingBalanced analog audio from - 50 dBu to +5 dBu in 1 dB steps

AES3 digital audio at 48 kHz sampling with an internal clockAES3 digital audio with an external word clock at 44.1, 48 or 96 kHz samplingBalanced analog audio from - 50 dBu to +5 dBu in 1 dB steps
  • Type: AES3/EBU
  • Output Level: -11 dBFS
  • Sample Rate
  • Internal clock: 48 kHz
  • External clock: 44.1, 48 or 96 kHz
  • THD: 0.15%
  • Output Connectors: TA3 male (mini XLR)
  • Word Clock Input
  • Parameter: Standard TTL level
  • Termination: 75 ohm (removable)
  • Connector: BNC
  • Analog Output
    Type: Balanced
  • Output Level: -50 to +5 dBu in 1 dB steps
  • THD: 0.15%
  • Power Requirements: 7 min. to 18 max. VDC
    (with SRc receiver) • 345 mA at 7 VDC
    • 200 mA at 12 VDC
    • 135 mA at 18VDC
  • Accessories visible on product image are not included
