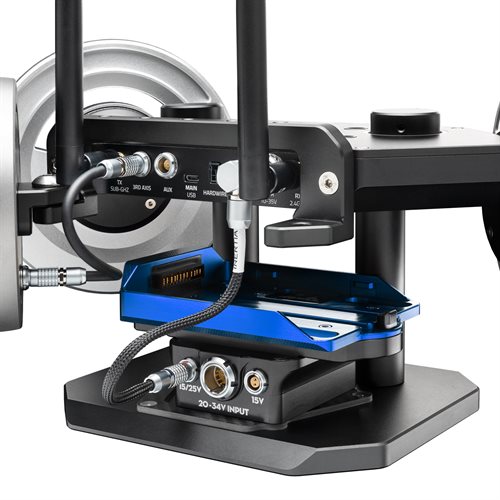

TB50 Expansion Pack for NODO Inertia Wheels Blue
Premium power upgrade!
This TB50 Expansion Pack ( 100276 ) distributes reliable power from a single TB50 battery to NODO Inertia Wheels, your preferred monitor and transmitter.
Source 20-34V from a block battery to enable hot-swap and eliminate downtime. And yes, we include a robust, 8ft block battery cable ??
Simply mount, plug and play!
We've designed this package to live within the footprint of the controller base so it can travel built, inside the OEM foam case.
Inertia Wheels are compatible with MoVI Pro, MoVI XL, Ronin 2, and other gimbals.
Power Expansion Pack
Carbon Mounting Plate
Six M3 x 8mm countersunk screws
Power Cable 3-Pin Lemo Straight to 8-Pin Lemo Right Angle (7-inch/18cm)
Power Cable 3-Pin XLR Straight to 8-Pin Lemo Straight (8ft/2.4m)
NOTE
Our block battery cable is different to the XLR Power Cable that ships with Inertia Wheels. Our version features a 2B Lemo connector, NODO's features a 1B Lemo connector for feeding power directly into the wheel controller.
TB50 battery delivers higher voltage (20-25.5V) than a V-Lock or Gold Mount battery (11-17V).
This gives the Inertia Motors more strength which means higher drag or mass settings before slipping
8-Pin Lemo DC input enables hot-swap
Streamline your workflow on set by using one battery type
TB50 batteries are compact, affordable and air travel safe
This power solution lives within the footprint of the controller base so it fits inside the OEM foam case
INPUTS/OUTPUTS
8-Pin Lemo Input
20-34V DC Input for sourcing power from a block battery. 2B 8-Pin Lemo is the same as ALEXA Mini/Mini LF.
3-Pin Lemo Output
Unregulated 20-25V for powering Inertia Wheels
Two 2-Pin Lemo Outputs
15V (100W total) for powering your monitor, transmitter or other accessories
MADE FROM
High-grade 6061-T651 aluminium billet
3mm Carbon Fibre
WEIGHT
12.7oz / 362g solo
31.2oz / 886g with TB50
DIMENSIONS (LxWxH)
5.43 x 3.62 x 2.63” / 138 x 92 x 67mm
