PANASONIC GH5 CAGE OFFSET SHOULDER MOUNT

Product code : SHA.GH5SM-OF

UPC code :629266006764


Bookmark and Share


$ 2,018.01
    • Availability: Call for a delivery estimate

Tell a Friend

Panasonic GH5 cage 15 mm LW rod (GH5ROD)

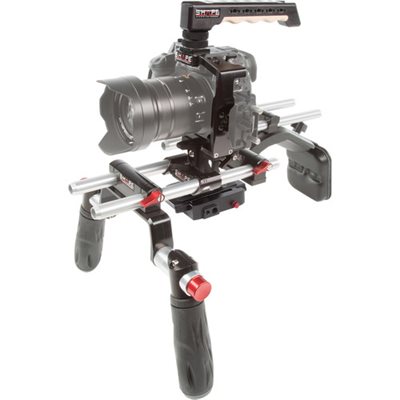

The SHAPE Cage with 15 mm Lightweight Rod System for Panasonic GH5 includes a form-fitting cage, REVOLT top handle grip, quick release plate, adjustable Rod Bloc system, and a pair of 10" 15 mm rods. The cage wraps securely around the GH5 camera body, preventing unwanted rotation while providing an abundance of 1/4"-20 and 3/8"-16 accessory threads. The camera is fixed to the cage by a 1/4"-20 screw under the unit, and the position is secured with the back and sides of the cage, so it will not move forward when equipped with a heavy lens.

Quick release plate adapter (577QR)


The SHAPE Quick Release Plate Adapter gives you the freedom to remove your camera from your tripod, stabilizer, or support rig without having to detach it from the plate. It includes a Manfrotto 501PL style sliding plate, meaning that the plate will also work with any Manfrotto system that accepts a 501PL plate. A 1/4"-20 screw and a 3/8"-16 screw are included so you can use the plate with various cameras. 1/4"-20 and 3/8"-16 threaded holes on the underside of the adapter allow you attach the plate to a tripod, stabilizer, or support rig. Three bubble levels are available to assist in leveling your camera.
  • Manfrotto 501PL compatible sliding plate
  • 1/4"-20 and 3/8"-16 camera screws
  • Spring-loaded locking pin
  • 1/4"-20 and 3/8"-16 mounting threads
  • Three bubble levels

Top handle cold shoe DSLR (DTH1)

The SHAPE Top Handle Cold Shoe for DSLR Camera is CNC machined from aluminum and features a wooden finger grip made from Canadian maple. The handle mounts onto the shoe of your camera or cage and can be inserted to face forward or rearward. It incorporates a total of (15) 1/4"-20 threaded mounting holes with ARRI anti-twist mounting threads along the length of the handle and (2) cold shoe mounts, one at the front of the handle and one at the back. There is also (1) EVF mount bracket to attach our 15 mm rod clamp (15CTH) or our Push-button arm View Finder Bracket (C2VVF, EVVF).

Quick handle rod bloc (HAND5)

The SHAPE Quick handle rod bloc is a professional video stabilization accessory with 2 camera handle grips, each providing an individual rotation angle of 360°. You can attach the handle to the camera platform using a simple screw knob. A simple Push-Button located at the articulation allows easy attachment and removal. Combined with the anodized aluminum rod bloc, the quick handle offers composite camera support for all 15 mm rods. You can achieve precise positioning by sliding the Quick Handle along the rods and tightening the small red knob located on the Rod Bloc. The rod bloc is designed with 2 screw-threaded holes allowing the mounting of the Quick Handle. SHAPE is well known for its patented Push-button handle, now used by so many professionals in the industry. The technology was developped to give filmakers quick and easy adjustment. By simply pressing the button, you are allowed a 360-degree rotation to place the handle in the best position for your use. Push, adjust, release, and then its lock.

Offset rail 15 mm 2-rod bloc (BMOFBRAC)

The SHAPE 15 mm Off-Set Bracket is designed to fit offset configuration and let you insert 15 mm rods.

Composite mini shoulder pad (SHPAD3)

The SHAPE mini composite shoulder pad is padded for superior comfort and is made of slip-free material. It is designed with a 15 mm rod block on top allowing to hold 15 mm rods for camera and accessories to be attached. The screw knob allows to attach SHAPE counter-weight (PAD1, PADCW1). By adding extra male-female rods at the back, you can also attach a counter-weight behind the same rods. This way, your body can easily supports the weight of the camera and its accessories. The shoulder pad is also the perfect solution for switching rapidly from shoulder to tripod without having to remove the shoulder pad. It can remain on the camera rig permanently.

Back pad (PAD1)

The back pad (PAD1) features a powder coated anodized aluminum plate and arm which are attached to a thick padding on the side facing the user. It is compatible with the SHAPE Mini Composite Shoulder Pad (SHPAD3, SHPAD2, SHPAD1) and can be attach or remove easily from your rig via a 1/4-20 camera screw knob. Additionally, the back pad’s position can be adjusted to the user’s preference – up to 2″ vertically and 360° horizontally. The bottom of the back pad is designed with (2) 1/4-20 threaded holes, allowing to attach other accessories or counterweights.

15 mm 10" rods (15TUBE10)

This pair of SHAPE 15 mm Aluminum Rods (10") connect into your camera rig, extend it, and let you add various SHAPE and third-party accessories compatible with 15 mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch. The rods are each 15 mm in diameter, 10 inches long, hollow, non-threaded, and made of reliable aluminum coated with a clear finish.

15 mm 12" rods (15TUBE12)

This pair of SHAPE 15 mm Aluminum Rods (12") connect into your camera rig, extend it, and let you add various SHAPE and third-party accessories compatible with 15 mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch. The rods are each 15 mm in diameter, 12 inches long, hollow, non-threaded, and made of reliable aluminum coated with a clear finish.

  • Offset bracket 15 mm for better control
  • Robust, easy & fast to assemble and disassemble
  • Easy access to all the controls and outputs
  • Cable protector access
  • ¼-20 and 3/8-16 threaded holes
  • Removable Metabones® Support Bracket
  • Removable, ergonomic and robust top handle
  • Quick release baseplate
  • Adjustable rod bloc system for better adjustment of your camera optical center
  • Quick handle rod bloc system with Push-Button
  • Padded shoulder mount for superior comfort
Accessories visible on product image are not included
