PANASONIC HD Integrated Cam SDI White
Press and move to zoom
Mouse over image to zoom

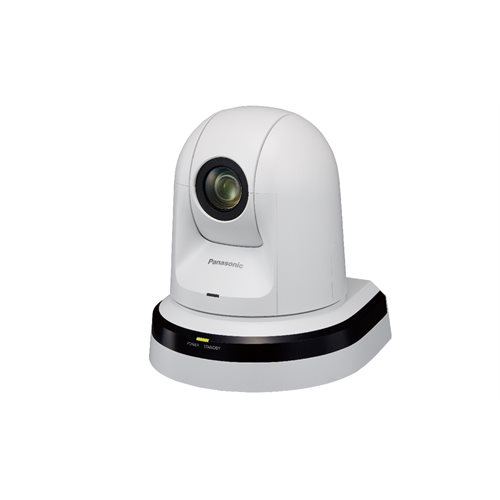

PANASONIC HD Integrated Cam SDI White

Product code : PAN.AW-HE42WEJ


Bookmark and Share


$ 5,626.34
    • Availability: Out of Stock Call for a delivery estimate

Tell a Friend

The AW-HE42 PRO PTZ remote camera is designed to produce great results in a variety of applications that require high-quality video and precise control—such as event capture, staging, distance learning, lecture capture, live streaming and more. Thanks to the precision 20x optical zoom lens, a wide field of view, smooth pan/tilt/zoom functions and exceptional image quality, HE42 cameras are ideal for demanding remote video productions and IMAG use. With IP preview transmission and control, support for PoE+ (which allows power to be supplied via a LAN cable), and versatile control / workflow options, the HE42 also offers the flexibility needed for easy installation and management.

1/2.3" MOS Sensor

The AW-HE42 PRO PTZ camera is equipped with a 1/2.3-type MOS sensor and DSP (Digital Signal Processor) for high sensitivity and high resolution video production. The HE42 delivers an impressive signal-to-noise ratio, 1000 TV lines of resolution and 16-axis color matrix control for precise camera painting and matching.

20x Optical Zoom Lens

aw-he42 - 1

In addition to its high-performance 20x optical zoom, ultra-high-resolution technology has enabled intelligent camera zoom of up to 30x, while maintaining high resolution. This enables capture of crisp close-ups, even in large auditoriums and lecture halls. The camera can also be set with 12x digital zoom*5, or 1.4, 2.0, 4.0, 6.0 or 8.0 digital extender zoom options.

Optical Image Stabilization

Shaky video is heavily reduced with both optical (O.I.S) and digital 4-axis automatic image stabilization that detects mounting surface vibration that may be caused by audio equipment and opening/closing doors. The AW-HE42 optimizes for shooting stability, wherever it may be mounted.

Quad Drive Lens System

quad drive lens system

The AW-HE42 is equipped with a powerful Quad Drive Lens System, featuring three zoom lenses and one focus lens which are all driven independently, yet simultaneously. Driving each of the four lenses individually enables a reduced lens size and drive range, allowing for a smaller camera body size with exceptional quality zoom and incredible image magnification.

External Sync Signal

The AW-HE42 robotic camera is also equipped with an external sync signal*1 input connector (genlock) as well as BBS (Black Burst Sync) and tri-level sync.


HDMI, SDI, USB & LAN

aw-he42 inputs outputs

Full HD video output is enabled with HDMI, SDI, USB and LAN cable compatibility.

Night Mode

night mode

For shooting in virtually total darkness, the AW-HE42's Night Mode makes it possible to automatically switch to the capture of high-quality, HD monochrome video with the use of an (optional) IR illuminator in the 850nm range, making the camera ideal for reality show production, sleep lab research, wildlife documentaries and staging support. The camera can be set to switch to the mode manually or automatically depending on surrounding light levels.

Optical ND Filter

Equipped with a motorized optical ND (neutral density) filter wheel allows the AW-HE42 to be utilized in varied lighting environments.

HDR Mode

hdr mode
The AW-HE42 already includes many innovative standard features developed to expand the capabilities of professional video system users. In addition to Panasonic's Dynamic Range Stretch (DRS) and advanced Digital Noise Reduction (DNR), an ingenious High Dynamic Range (HDR) mode helps to produce very good video even in extreme contrast and lighting conditions. When shooting and synthesizing two images with differing exposure times, the HE42 can create video that corrects for halation and black defects, even under backlit conditions.

PoE+

The AW-HE42 embraces the Power of Ethernet+ (PoE+) technology for easier system installation and setup.

Freeze During Preset

The freeze during preset playback function is great for single-camera operations, allowing for clean preset transitions. Setup your shot, freeze the video, make your preset transition without it going live, and return to the live video. Perfect for situations where you're streaming live directly without a switcher.

Preset Memory

Equipped with a JPEG Image Saving function that enables camera video to be saved, played back and deleted on a microSD card as still JPEG images.

Smooth Pan/Tilt

The pan range of ±175° and the tilt range of -30° to +90° cover a wide shooting area. Pan and tilt operate at a maximum speed of 90°/second and respond quickly to remote control operation.

Whisper Quiet Operation

The AW-HE42 operates super quietly at a sound level of NC35 or even lower. This allows use of a remote camera in a house of worship, lecture hall, museum or any venue where noise could be distracting to the audience or performers.




  • /2.3" MOS Sensor with 20x Optical Zoom (extendable by iA zoom)
  • Excellent HD video via 3G-SDI, HDMI, USB & LAN
  • High Dynamic Range function (HDR), suitable for backlit condition
  • A Single Cable Solution for Remote Video and Audio Capture (NDI|HX option available)
  • Supports PoE+ (Power over Ethernet+) for lower installation costs
General -
Power Requirements DC 12 V (Supplied AC adaptor)
DC 42 V to 57 V (PoE+ power supply)
Current consumption 1.3 A (Supplied AC adaptor)
0.5 A (PoE+ power supply)
Ambient Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature -20 °C to 50 °C (-4 °F to 122 °F)
Mass Approx. 1.5 kg (3.30 lb)
Dimensions (W x H x D) (mm) 160 mm x 186 mm x 179 mm[excluding protrusions, direct ceiling mount bracket]
Dimensions (W x H x D) (inch) 6-5/16 inches x 7-41/128 inches x 7-3/64 inches[excluding protrusions, direct ceiling mount bracket]
Finish [AW-HE42W] Pearl white
[AW-HE42K] Metallic black
Controller supported*1 AW-RP150GJ*1, AW-RP50, AK-HRP1000GJ*1, AK-HRP1005GJ*1
INPUT -
Power DC 12 V IN, PoE+ (IEEE802.3at standard)
Mic/line input Stereo mini-jack (?3.5 mm)
Input impedance: Approx. 2 kOhm(unbalanced)
[Mic input]
Supported microphones: Stereo mic
(plug-in power, on/off switching via menu)
Supplied voltage: 2.5 V ± 0.5 V
Mic input level: -60 dBV ± 3 dBV (0 dB=1 V/Pa,1 kHz)
[Line input]
Input level: -10 dBV ± 3 dBV
G/L IN -
Genlock Maximum speed during manual: 90°/s
OUTPUT -
Video Output | HDMI HDMI connector
* HDCP is not supported. * VIERA Link is not supported.
Video output | 3G/HD-SDI OUT Compliant with the SMPTE424/SMPTE292M standards/75 (BNC x 1)
INPUT/OUTPUT -
Input/Output Connector | LAN LAN connector for IP control (RJ-45) Equipped with straight/crossover cable auto detection function
Input/Output connector | RS232C Mini DIN 8-pin (IN) Mini DIN 8-pin (OUT)
Input/Output connector | RS422 CONTROL IN RS422A (RJ-45)
INPUT/OUTPUT connector | USB Mini-B port
INPUT/OUTPUT connector | SD card microSD card slot
FUNCTIONS AND PERFORMANCE -
[Camera unit] -
Imaging Sensors 1/2.3-type MOS
LENS Motorized 20x zoom, F1.8 to F3.6
[f=4.08 mm (5/32 inches) to 81.6 mm (3-7/32 inches); 35 mm (1-3/8 inches) equivalent: 29.5 mm (1-5/32 inches)to 612.0 mm (24-3/32 inches)]
Focus Switching between auto and manual
Focus Distance Entire zooming range:1.5 m (4.92 ft)
Wide end: 10 cm (0.33 ft)
Color separation optical system On-chip color filter system
Minimum illumination | 59.94 Hz 0.7 lx (50 IRE, F1.8, 48 dB,1/60 without accumulation)
0.35 lx (50 IRE, F1.8, 48 dB,1/30 with accumulation[Frame Mix 6 dB])
Minimum illumination | 50 Hz 0.7 lx (50 IRE, F1.8, 48 dB,1/50 without accumulation)
0.35 lx (50 IRE, F1.8, 48 dB,1/25 with accumulation[Frame Mix 6 dB])
Horizontal Resolution HD: 1000 TV lines Typ (Center area)
Gain selection*2 Auto, 0 dB to 48 dB (3 dB step)
Frame mix*3 Auto, Off, 6 dB, 12 dB, 18 dB, 24 dB
ND filter Auto*4, Through, 1/4, 1/16, 1/64
Electronic shutter speed | During Full Auto 1/60 to 1/2000 (Auto Slow Shutter: Off)[59.94 Hz] 1/30 to 1/2000 (Auto Slow Shutter: On)[59.94 Hz] 1/50 to 1/2000 (Auto Slow Shutter: Off)[50 Hz] 1/25 to 1/2000 (Auto Slow Shutter: On)[50 Hz]
Electronic shutter speed | During Auto 1/60 to 1/2000 [59.94 Hz] 1/50 to 1/2000 [50 Hz]
Electronic shutter speed | During Manual 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 [59.94 Hz]
1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 [50 Hz]
Synchro scan 59.94 Hz : 59.94 Hz to 660.09 Hz (255 step) 50 Hz : 50.00 Hz to 570.12 Hz (255 step)
Gamma Off, Normal (Low, Mid, High), Cinema
WHITE BALANCE ATW, AWB A, AWB B, ATW, 3200K,5600K, VAR (2400K to 9900K)
Chroma Amount Variability ±3 step
Scene File Full Auto, Manual1, Manual2, Manual3
Output Format HD
1080:59.94p/50p
1080:59.94i/50i
1080:29.97p/25p
1080:29.97PsF/25PsF
720:59.94p/50p
Synchronization System Internal synchronization/External synchronization (BBS, Tri-level sync)
Image Stabilization Optical /4-axis hybrid image stabilizer for stable
[USB connection] * This may vary depending on the operating environment.
VIDEO OUTPUT USB Video Class Ver1.0
[USB connection]Video compression format Motion JPEG
Resolution 1920 x 1080, 1280 x 720, 640 x 360
Frame rate max 30 fps (59.94 Hz)
max 25 fps (50 Hz)
AUDIO OUTPUT USB Audio Class Ver1.0
[USB connection]Audio compression format Linear PCM, 48 kHz, 16-bit, 2 channels
Transfer modes(JPEG) 1920x1080/1280x720/640x360
Supported models Devices standardly equipped with a USB 2.0 compatible port
[Pan-tilt head unit] -
Installation Method Stand-alone (Desktop) or suspended (Hanging)*5
Pan/Tilt Operation Speed Maximum speed during preset: 300°/s
Panning range ±175°
Tilting Range -30°to 90°*6
Quietness During preset: NC40 or less
During manual: NC35 or less
[Camera/pan-tilt head control] -
IP connecting cable When connecting through a hub:
LAN cable*7 (category 5 or above),max. 100 m (328 ft)
When using a PoE+ hub:
LAN cable*7 (category 5e or above),max. 100 m (328 ft)
When a hub is not used:
LAN cable*7 (category 5 or above),max. 100 m (328 ft)
AW protocol connecting cable LAN cable*7 (category 5 or above,straight cable), max. 1000 m (3280 ft)
Standard protocol connecting cable Mini DIN 8-pin cable, male
[SD card recording] -
SD card recording MPEG-4 AVC file standard compliant (.MP4)
Video Compression Format MPEG-4 AVC/H.264 High Profile
Audio Compression Format AAC-LC (48 kHz, 16 bit, 2 ch, 128 kbps)
Recording format/Bit rate | 59.94 Hz
1920x1080/59.94p (Up to 28 Mbps),
1920x1080/29.97p (Average 15 Mbps/Average 10 Mbps/Average 6 Mbps),
1280x720/59.94p (Average 15 Mbps),
1280x720/29.97p (Average 8 Mbps/Average 4 Mbps/Average 2 bps/Average 1 Mbps)
Recording format/Bit rate | 50 Hz 1920x1080/50p(Up to 28 Mbps),
1920x1080/25p(Average 15 Mbps/Average 10 Mbps/Average 6 Mbps),
1280x720/50p(Average 15 Mbps),
1280x720/25p(Average 8 Mbps/Average 4 Mbps/Average 2 Mbps/Average 1 Mbps)
[Network] -
Transfer modes | JPEG 1920x1080, 1280x720, 640x360, 320x180,
59.94 Hz (30fps/15fps/5fps)*8,
50 Hz (25fps/12.5fps/5fps)*8
Transfer modes | H.264 1920x1080, 1280x720, 640x360, 320x180,
59.94 Hz (60fps*9/30fps/15fps/5fps)*8,
50 Hz (50fps*9/25fps/12.5fps/5fps)*8
Supported protocol | IPv4 TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP,
IPv4 DHCP, DNS, NTP, IGMP, UPnP, ICMP, ARP, RTSPoverTCP,
RTSPoverHTTP, SSL(TLS), MultiCast/UniCast
Supported protocol | IPv6 TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, DHCPv6, DNS,
IPv6 NTP, ICMPv6(MLD), RTSPoverTCP, RTSPoverHTTP, SSL(TLS), MultiCast/UniCast
iOS, Android Support JPEG image display
Accessories Mount bracket for installation surface (Hanging*10 / Desktop): 1
Drop-prevention wire (already attached to the unit): 1
Bracket mounting screws (bind-head) M4 x 10 mm: 4
Main unit mounting screw (with flat washer, spring washer) M3 x 6 mm: 1
Power cable (1.5 m [4.92 ft]): 1
AC adaptor: 1
CD-ROM: 1
Note *1: It may be necessary to upgrade the version of the controller so that the controller will support the unit. *2: During Auto, 6 dB to 48 dB (6 dB step) are available for AGC Max Gain setting.
*3: During Auto, 0 dB, 6 dB, 12 dB and 18 dB are available for Auto F.Mix Max Gain setting. *4: “Auto” is available when “Scene” setting is “Full Auto”.
*5: To ensure safety, the unit must be secured using the mount bracket supplied. *6: Depending on the pan or tilt position, the camera may be reflected in the image.
*7: Use of an STP (shielded twisted pair) cable is recommended. *8: The frame rate may be lower than the setting depending on the operating conditions.
*9: When the image resolution is “640x360” or“320x180”, 60fps or 50fps cannot be selected for the frame rate.
*10: To ensure more safety, AW-HE42W/K can be secured by using the direct ceiling mount bracket (WV-Q105A).

General -
Power Requirements DC 12 V (Supplied AC adaptor)
DC 42 V to 57 V (PoE+ power supply)
Current consumption 1.3 A (Supplied AC adaptor)
0.5 A (PoE+ power supply)
Ambient Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature -20 °C to 50 °C (-4 °F to 122 °F)
Mass Approx. 1.5 kg (3.30 lb)
Dimensions (W x H x D) (mm) 160 mm x 186 mm x 179 mm[excluding protrusions, direct ceiling mount bracket]
Dimensions (W x H x D) (inch) 6-5/16 inches x 7-41/128 inches x 7-3/64 inches[excluding protrusions, direct ceiling mount bracket]
Finish [AW-HE42W] Pearl white
[AW-HE42K] Metallic black
Controller supported*1 AW-RP150GJ*1, AW-RP50, AK-HRP1000GJ*1, AK-HRP1005GJ*1
INPUT -
Power DC 12 V IN, PoE+ (IEEE802.3at standard)
Mic/line input Stereo mini-jack (φ3.5 mm)
Input impedance: Approx. 2 kOhm(unbalanced)
[Mic input]
Supported microphones: Stereo mic
(plug-in power, on/off switching via menu)
Supplied voltage: 2.5 V ± 0.5 V
Mic input level: -60 dBV ± 3 dBV (0 dB=1 V/Pa,1 kHz)
[Line input]
Input level: -10 dBV ± 3 dBV
G/L IN -
Speeds Maximum speed during manual: 90°/s
OUTPUT -
Video Output | HDMI HDMI connector
* HDCP is not supported. * VIERA Link is not supported.
Video output | 3G/HD-SDI OUT Compliant with the SMPTE424/SMPTE292M standards/75 (BNC x 1)
INPUT/OUTPUT -
Input/Output Connector | LAN LAN connector for IP control (RJ-45) Equipped with straight/crossover cable auto detection function
Input/Output connector | RS232C Mini DIN 8-pin (IN) Mini DIN 8-pin (OUT)
Input/Output connector | RS422 CONTROL IN RS422A (RJ-45)
INPUT/OUTPUT connector | USB Mini-B port
INPUT/OUTPUT connector | SD card microSD card slot
FUNCTIONS AND PERFORMANCE -
[Camera unit] -
Imaging Sensors 1/2.3-type MOS
LENS Motorized 20x zoom, F1.8 to F3.6
[f=4.08 mm (5/32 inches) to 81.6 mm (3-7/32 inches); 35 mm (1-3/8 inches) equivalent: 29.5 mm (1-5/32 inches)to 612.0 mm (24-3/32 inches)]
Focus Switching between auto and manual
Focus Distance Entire zooming range:1.5 m (4.92 ft)
Wide end: 10 cm (0.33 ft)
Color separation optical system On-chip color filter system
Minimum illumination | 59.94 Hz 0.7 lx (50 IRE, F1.8, 48 dB,1/60 without accumulation)
0.35 lx (50 IRE, F1.8, 48 dB,1/30 with accumulation[Frame Mix 6 dB])
Minimum illumination | 50 Hz 0.7 lx (50 IRE, F1.8, 48 dB,1/50 without accumulation)
0.35 lx (50 IRE, F1.8, 48 dB,1/25 with accumulation[Frame Mix 6 dB])
Horizontal Resolution HD: 1000 TV lines Typ (Center area)
Gain selection*2 Auto, 0 dB to 48 dB (3 dB step)
Frame mix*3 Auto, Off, 6 dB, 12 dB, 18 dB, 24 dB
ND filter Auto*4, Through, 1/4, 1/16, 1/64
Electronic shutter speed | During Full Auto 1/60 to 1/2000 (Auto Slow Shutter: Off)[59.94 Hz] 1/30 to 1/2000 (Auto Slow Shutter: On)[59.94 Hz] 1/50 to 1/2000 (Auto Slow Shutter: Off)[50 Hz] 1/25 to 1/2000 (Auto Slow Shutter: On)[50 Hz]
Electronic shutter speed | During Auto 1/60 to 1/2000 [59.94 Hz] 1/50 to 1/2000 [50 Hz]
Electronic shutter speed | During Manual 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 [59.94 Hz]
1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 [50 Hz]
Synchro scan 59.94 Hz : 59.94 Hz to 660.09 Hz (255 step) 50 Hz : 50.00 Hz to 570.12 Hz (255 step)
Gamma Off, Normal (Low, Mid, High), Cinema
WHITE BALANCE ATW, AWB A, AWB B, ATW, 3200K,5600K, VAR (2400K to 9900K)
Chroma Amount Variability ±3 step
Scene File Full Auto, Manual1, Manual2, Manual3
Output Format HD
1080:59.94p/50p
1080:59.94i/50i
1080:29.97p/25p
1080:29.97PsF/25PsF
720:59.94p/50p
Synchronization System Internal synchronization/External synchronization (BBS, Tri-level sync)
Image Stabilization Optical /4-axis hybrid image stabilizer for stable
[USB connection] * This may vary depending on the operating environment.
VIDEO OUTPUT USB Video Class Ver1.0
[USB connection]Video compression format Motion JPEG
Resolution 1920 x 1080, 1280 x 720, 640 x 360
Frame rate max 30 fps (59.94 Hz)
max 25 fps (50 Hz)
AUDIO OUTPUT USB Audio Class Ver1.0
[USB connection]Audio compression format Linear PCM, 48 kHz, 16-bit, 2 channels
Transfer modes(JPEG) 1920x1080/1280x720/640x360
59.94 Hz: 30fps/15fps/5fps, 50 Hz: 25fps/12.5fps/5fps Supported
Supported models Devices standardly equipped with a USB 2.0 compatible port
[Pan-tilt head unit] -
Installation Method Stand-alone (Desktop) or suspended (Hanging)*5
Pan/Tilt Operation Speed Maximum speed during preset: 300°/s
Maximum speed during manual: 90°/s
Panning range ±175°
Tilting Range -30°to 90°*6
Quietness During preset: NC40 or less
During manual: NC35 or less
[Camera/pan-tilt head control] -
IP connecting cable When connecting through a hub:
LAN cable*7 (category 5 or above),max. 100 m (328 ft)
When using a PoE+ hub:
LAN cable*7 (category 5e or above),max. 100 m (328 ft)
When a hub is not used:
LAN cable*7 (category 5 or above),max. 100 m (328 ft)
AW protocol connecting cable LAN cable*7 (category 5 or above,straight cable), max. 1000 m (3280 ft)
Standard protocol connecting cable Mini DIN 8-pin cable, male
[SD card recording] -
SD card recording MPEG-4 AVC file standard compliant (.MP4)
Video Compression Format MPEG-4 AVC/H.264 High Profile
Audio Compression Format AAC-LC (48 kHz, 16 bit, 2 ch, 128 kbps)
Recording format/Bit rate | 59.94 Hz 1920x1080/59.94p (Up to 28 Mbps),
1920x1080/29.97p (Average 15 Mbps/Average 10 Mbps/Average 6 Mbps),
1280x720/59.94p (Average 15 Mbps),
1280x720/29.97p (Average 8 Mbps/Average 4 Mbps/Average 2 bps/Average 1 Mbps)
Recording format/Bit rate | 50 Hz 1920x1080/50p(Up to 28 Mbps),
1920x1080/25p(Average 15 Mbps/Average 10 Mbps/Average 6 Mbps),
1280x720/50p(Average 15 Mbps),
1280x720/25p(Average 8 Mbps/Average 4 Mbps/Average 2 Mbps/Average 1 Mbps)
[Network] -
Transfer modes | JPEG 1920x1080, 1280x720, 640x360, 320x180,
59.94 Hz (30fps/15fps/5fps)*8,
50 Hz (25fps/12.5fps/5fps)*8
Transfer modes | H.264 1920x1080, 1280x720, 640x360, 320x180,
59.94 Hz (60fps*9/30fps/15fps/5fps)*8,
50 Hz (50fps*9/25fps/12.5fps/5fps)*8
Supported protocol | IPv4 TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP,
DHCP, DNS, NTP, IGMP, UPnP, ICMP, ARP, RTSPoverTCP,
RTSPoverHTTP, SSL(TLS), MultiCast/UniCast
Supported protocol | IPv6 TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, DHCPv6, DNS,
NTP, ICMPv6(MLD), RTSPoverTCP, RTSPoverHTTP, SSL(TLS), MultiCast/UniCast
iOS, Android Support JPEG image display
Accessories Mount bracket for installation surface (Hanging*10 / Desktop): 1
Drop-prevention wire (already attached to the unit): 1
Bracket mounting screws (bind-head) M4 x 10 mm: 4
Main unit mounting screw (with flat washer, spring washer) M3 x 6 mm: 1
Power cable (1.5 m [4.92 ft]): 1
AC adaptor: 1
CD-ROM: 1
Note *1: It may be necessary to upgrade the version of the controller so that the controller will support the unit. *2: During Auto, 6 dB to 48 dB (6 dB step) are available for AGC Max Gain setting.
*3: During Auto, 0 dB, 6 dB, 12 dB and 18 dB are available for Auto F.Mix Max Gain setting. *4: “Auto” is available when “Scene” setting is “Full Auto”.
*5: To ensure safety, the unit must be secured using the mount bracket supplied. *6: Depending on the pan or tilt position, the camera may be reflected in the image.
*7: Use of an STP (shielded twisted pair) cable is recommended. *8: The frame rate may be lower than the setting depending on the operating conditions.
*9: When the image resolution is “640x360” or“320x180”, 60fps or 50fps cannot be selected for the frame rate.
*10: To ensure more safety, AW-HE42W/K can be secured by using the direct ceiling mount bracket (WV-Q105A).
