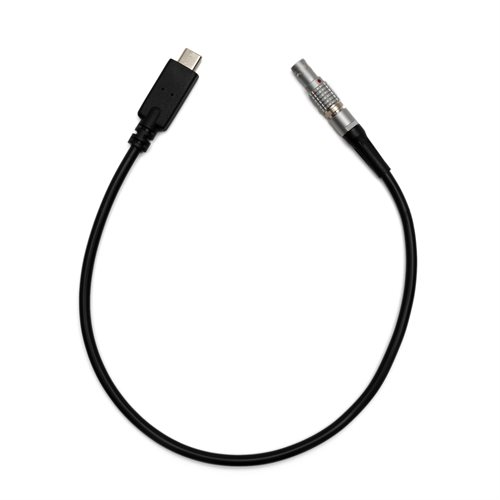

Sound Devices 5-Pin LEMO > USB-C timecode input cable for A20-Mini
5-Pin LEMO to USB-C timecode input/output cable for the A20-Mini
The A20-Mini accepts timecode from external LTC sources. Please refer to the FAQ page
Jamming Timecode on A20-Mini
The A20-Mini accepts timecode from external LTC sources.
The timecode value and frame rate are taken from incoming LTC
source. If timecode has not been jammed, the A20-Mini starts
rolling timecode from 00:00:00:00 when it is powered on.
Jammed timecode values are held for up to four hours after
powering off, and up to one hour after the battery has been
removed. This allows for time to swap batteries without having
to re-jam timecode.
To jam timecode, connect a valid LTC source using one of the
optional accessories, Sound Devices XL-TC-USBC-LEMO or
XL-TC-USBC-BNC, to the A20-Mini USB-C port. Timecode is
automatically jammed once
a valid LTC source is connected.
After a successful timecode jam, the Audio/LTC LED flashes
blue on the 00 frame crossing.
Timecode is output from the USB-C using the Sound Devices
XL-TCU-LEMO, so that you can verify the A20-Mini timecode is
in sync with the LTC source. The Audio/LTC LED stops flashing
blue when USB-C is disconnected.
