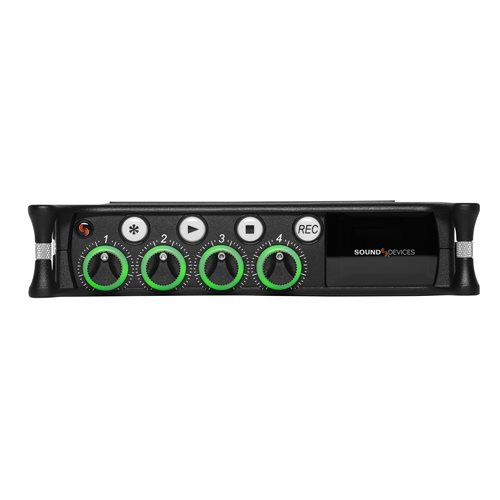

Sound Devices Mixpre-6II 4 Preamp 8 Track 32BIT Float Recorder
Product code : SOU.MIXPRE-6II
If you record field audio, sound effects, podcasts, voice-overs, music, audio for film, or are just starting your audio journey, the MixPre-6 II is for you! With four crystal-clear, ultra low-noise Kashmir preamps, you can record multiple actors, multiple podcasters, or audio for film with superior quality – all the way up to a 32-bit float bit depth and a 192 kHz sample rate. This newest generation of Sound Devices’ award-winning MixPre Series has been redesigned for increased performance and an astounding 142 dB of dynamic range.
Your MixPre-6 II is highly customizable to your needs. Record internally to a compatible SD card on set or stream your podcast over USB to your computer at home. Power with your computer, wall power, or record in the middle of nowhere with AA or Sony L-mount batteries. Adjust limiters, bit depth, sample rates, gain, pan, low-cut, phase inversion and phantom power to your liking. Trigger your camera with the internal timecode generator, or feed timecode in via HDMI or Aux In. The choice is yours!
Professionals love the flexibility of the MixPre Series. Don’t need all those options? Basic mode has you covered.
Your MixPre-6 II is rugged, lightweight, and small, so you can throw it in a bag or mount it to a tripod or camera – or get situated on set with our Wingman App and one of our four supported USB control surfaces. With the superior sound and build quality that you can expect from the industry leader in production audio recording, your MixPre-6 II can capture audio for any application. Our friendly and knowledgeable John Barry’s support team is here for all your questions and comments. Our job is to make your job easier.
Customise With Plugins
Suppress background noise instantly on-location with the NoiseAssist plugin for MixPre II Series. One instance of NoiseAssist can run on any channel, bus L, or bus R.
Using multiple microphones with your MixPre II? Enable MixAssist to reduce unwanted background noise while recording.
Are you a songwriter or musician? Buy the Musician Plugin to easily create a song using your MixPre-6 II as a standalone recorder or USB interface. Use onboard features like overdub, bounce, reverb, and tracking to a metronome. Create Music Projects to lay down backing tracks and use them live or at home for writing or practicing. Capturing your song ideas has never been easier! While in Music Mode, the MixPre-6 II is limited to three simultaneous live inputs.
- Four ultra-low-noise Kashmir microphone preamps with adjustable limiters capture high quality audio in the field, on set, or with a computer.
- Create a mix using the built-in 6 x 2 portable mixer.
- Record up to 8 tracks to an SD card and backup to a USB thumb drive.
- 8-in, 4-out USB audio interface streams to your computer via USB-C.
- Choose bit depths from 16 to 32-bit float, and sampling rates from 44.1 kHz to 192 kHz.
- Internal LTC timecode generator. Timecode In/Out via Aux In/Stereo Out.
- Timecode and record triggering via HDMI.
- USB-A for control surfaces, keyboards, and auto-copy to USB drive.
- In-unit ISO mixing, gain, pan, low-cut, phase inversion, and phantom power.
- Sunlight-readable color touch screen and LED metering.
- Lightweight, durable, and small: perfect for bag use, mobile recording, or a home studio.
- Powerful 300 mW+300 mW headphone amp allows clear and accurate reference of audio.
- Includes a MX-4AA Battery Sled (batteries not included), MX-PSU AC Power Supply, and USB-C to USB-C cable.
- Customize with plugins from the Plugin Store.
What’s New in the MixPre-6 II?
- Bit depth up to 32-bit float for increased dynamic range.
- Same intuitive interface, more powerful hardware.
- Internal LTC Timecode Generation and Output.
- Adjustable Limiters.
- Auto-copy to USB Drive.
- Pre-roll buffer increased to 10 seconds.
- 10Hz to 80kHz +/- 0.5dB re 1kHz @ 192kHz sample rate
THD + Noise
- 0.005% max (@1kHz, 22-22kHz BW, gain=20dB, -10dBu in)
- 32 bit precision; 142 dB dynamic range min (A-weighted, gain=10dB, fader=0dB)
Equivalent Input Noise
- -130dBV (-128dBu) max (A-weighting, gain=76dB, 150 ohm source impedance)
- Mic: XLR active-balanced; 4k input
- Line: XLR active-balanced; 4k input
- Aux/Mic in: 3.5mm TRS, 2-channel unbalanced; 100k input
- Line: ¼-inch TRS active-balanced; 4k input
- USB Audio: 4 channels
- All inputs fully RF-filtered and overload protected.
- Mic input: +6dB to +76dB
- Line input: -20dB to +30dB
- Fader: -inf to +20dB
- Headphone: -inf to +20dB
- Total, Mic-to-recording (max): +96dB
- Aux In (Mic): Gain = +10dB to +40dB
- Aux In (Line): Gain = -10dB to +20dB
- Total Aux Gain including Fader (Mic-to-recording): +60dB
Maximum Input Level
- Mic XLR: +14dBu (limiters on or off)
- Line XLR: +28dBu (limiters on or off)
- Aux In (Mic): -10dBu
- Aux In (Line): +10dBu
Low Cut Filters
- 40Hz to 160Hz (adjustable), 18 dB/oct. First stage analog, subsequent stages digital.
- Mic XLRs: 48V via 6.8k resistors, 10mA each
- Mic 3.5mm: 3V @ 3k source
- Limiter at all gain stages, range > 40dB. First stage analog, subsequent stages digital. Adjustable Threshold, Ratio, and Release.
DAC feeding Stereo Out, Headphone Out
- 32 bit precision; 115dB dynamic range (A-weighted)
- 3.5mm TRS stereo unbalanced, 500 ohm output, +7.8dBu max output level
- 3.5mm TRS stereo unbalanced, 300mW + 300mW, for use with any impedance headphones
- Audio Interface (USB-C): 8-in/4-out; 44.1 to 96 kHz; 16/24-bit; Class-compliant USB 2.0 high speed or ASIO® (supplied via download)
- Mass Storage (USB-C): USB 2.0 high speed
- Keyboard (USB-A): Text entry and control
- Thumbdrive (USB-A): Manual or auto-copy to drive
- Midi Control Surface (USB-A)
Maximum Record Tracks
- 8 Tracks: Stereo mix + 6 ISOs
- 44.1 kHz
- 47.952 kHz
- 48 kHz
- 48.048 kHz
- 96 kHz
- 192 kHz
- 32 Float
- Type: SD, SDXC, SDHC Card (USB thumbdrive, copy only)
- Max Storage Size: 512 GB (SDXC)
- Card format: exFAT
- Polyphonic WAV
- Free Run
- Time of Day (file stamped w/current ToD)
- Rec Run
- Ext LTC (file stamped w/incoming LTC on 3.5mm Aux In)
- Camera TC (file stamped w/incoming TC from cameras that output TC)
Timecode Frame Rates
- Auto-detects (fps): 23.98 (same as 23.976)
3.5 mm Aux In
- Timecode Input
- Timecode: 20k ohm impedance, 0.3 V - 3.0 V p-p (–17 dBu - +3 dBu)
3.5 mm Stereo Out
- Timecode Output
- Timecode: 1k ohm impedance, 3.0V p-p (+12 dBu)
- TC Reader via HDMI
- Bluetooth LE: Wireless control using Wingman app
- HDMI (micro): Auto-record start/stop trigger from cameras that output record flag over HDMI
- Timecode: Auto-record start/stop trigger via Aux In timecode
- 320x256; 1.6-inch, color, sunlight-viewable IPS LCD
- AA Batteries: 4x AA sled (included); 8x AA sled (optional accessory). NiMH recommended
- From computer: Bus-powered via USB-C port; optional MX-USBY cable, connects one USB-C to two USB-A ports
- AC Adapter: MX-PSU (included) Power supply wall adapter w/ USB-C connector; 15W; has 4 adapter plugs for US, UK, AU & Europe
- L-Mount: Optional sled for 2x (hot-swappable) Sony L-type Li-ion batteries
- Operating: -20°C to 60°C, 0 to 90% relative humidity; (non-condensing)
- Storage: -40°C to 85°C
Dimensions and Weight
- Dimensions: 36mm x 166 mm x 118 mm (H x W x D); 1.40” x 6.53” x 4.65”
- Weight: .56 kg; 19.9 oz. (unpackaged, without batteries)
