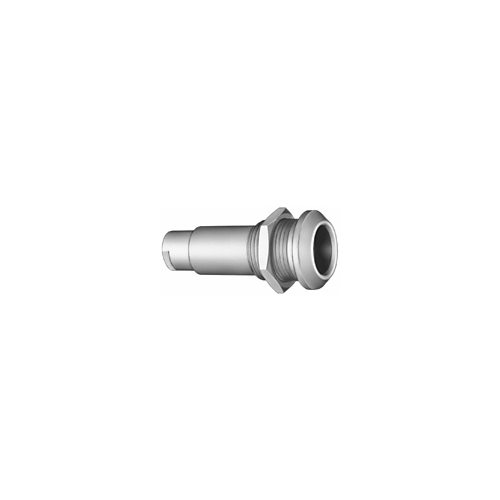

LEMO PSA.1E 50 Ohm Fixed Socket
Product code : LEM.PSA1E250CTLC35
PSA.1E.250.CTLC35 50 Ohm Line Socket – Precision RF Connector
Designed for high-frequency applications, the LEMO PSA.1E.250.CTLC35 Line Socket delivers exceptional signal integrity and rugged reliability. Built with LEMO’s signature push-pull self-latching system, this connector ensures quick, secure mating and meets stringent performance standards for RF systems.
Featuring a chrome-plated brass housing and gold-plated contacts, the PSA.1E.250.CTLC35 offers superior shielding and durability. Its PTFE insulator provides excellent dielectric properties, while the IP68 rating guarantees protection against dust and moisture when mated.
Key Highlights
- 50 Ohm Coaxial impedance for optimal RF performance
- Push-pull locking system for secure connections
- IP68 waterproof when mated
- Ideal for test & measurement, broadcast, medical, and aerospace applications
Looking for other configurations or custom RF solutions? Contact a LEMO sales consultant today to find the perfect connector for your application.
Specifications
| Brand | LEMO |
|---|---|
| Series | 1E |
| Gender | Fixed Socket |
| Contacts | 1 |
| Contact plating | Gold |
| Rated current | 12 A |
| Vtest (AC) | 3000 |
| Vtest (DC) | 4200 |
| Impedance | 50 Ohm |
| IP rating | IP68 (mated) |
| Operating Temp | -55 °C to +200 °C |
| Compliance | RoHS |
