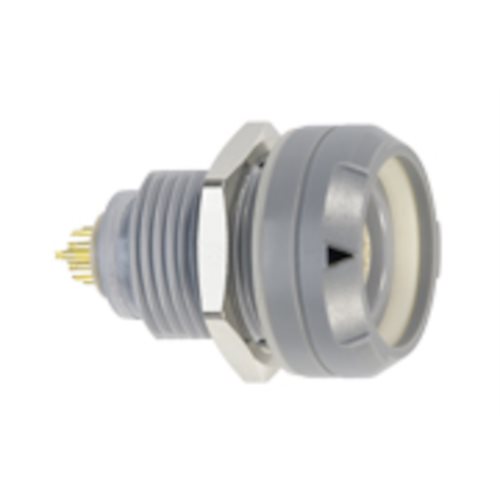

The REDEL 1P Series  circular plastic Push-Pull connectors are especially adapted for applications such as medical electronics and test & measurement. The  REDEL 1P series offers a wide choice of connectors with various contact configurations: multipole contacts, coaxial, fibre optics and fluidic connectors. In addition, a range of one time use connectors and connectors for mains power are available. The REDEL range connectors are available in 3 sizes, depending on the cable diameter. please note this is a "B" keyway.

Specifications

Brand	REDEL
Series	1P
Shell	PSU
Gender	Panel Socket
Contacts	8
Contact plating	Gold
Rated current	5 A
Test voltage (kV DC)	1.48
IP rating	IP64 (mated)
Cable Diameter Range	Not Applicable
Operating Temp	-50 °C to +150 °C
Compliance	RoHS
