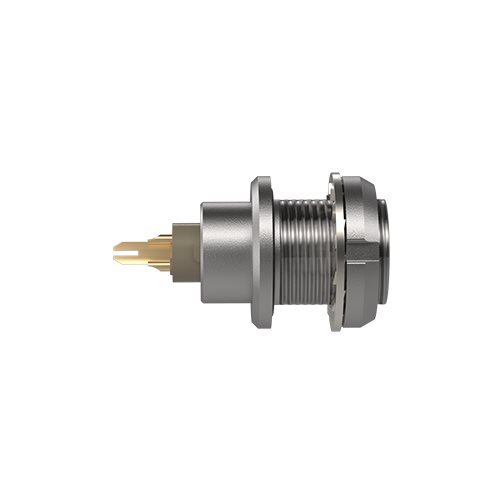

EAG.0T.511.CLL Panel Mounted Socket – Rugged IP68 Outdoor Connector

Engineered for demanding outdoor environments, the LEMO EAG.0T.511.CLL panel mounted socket offers superior protection against dust, moisture, and harsh conditions. Featuring an integrated inner sleeve and advanced sealing system, this connector ensures a watertight connection when mated, meeting the IP68 rating under the IEC 60529 standard.

• Outdoor-rated circular connector
• IP68 waterproof when mated
• Ideal for industrial, remote handling, and harsh environment applications

The 1000BASE-T1 standard allows high speed and bi-directional data traffic over light weight, single pair cable harnesses.
LEMO’s connector offer high bandwidth solution for automotive ethernet.
These miniature connector allow test and certification bodies to carry out automotive tests with LEMO’s reliable Push-Pull system. These connectors allow to connect and disconnect repeatedly sensors and actuators such as radars, front camera, LTE and onboard passenger animation to the vehicle’s main control systems.
Features:
– Compatible with unshielded twisted pair (UTP) and shielded twisted pair (STP)
– 1000BASE-T1 (IEEE 802.3bp)
– 1000 MBit/s full duplex
– Open Alliance standard

Looking for other configurations or custom solutions? Contact a LEMO sales consultant today to find the perfect fit for your application.
