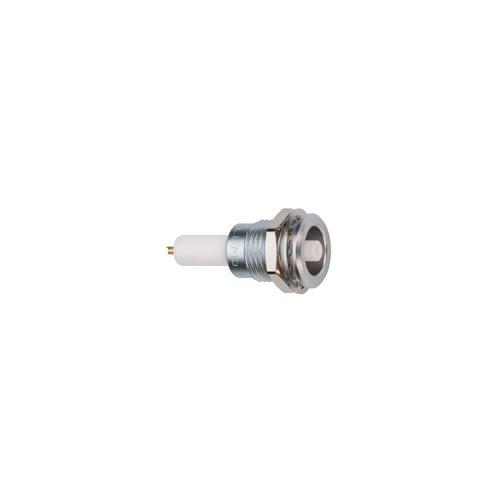

LEMO ERA.3S High Voltage Panel Socket
Key Features:
Single high-voltage contact with solder termination
10 A current rating and 10.5 kV AC test voltage
PTFE Insulator
Secure push-pull locking mechanism with circular keying for reliable connection
IP50 ingress protection and superior salt spray corrosion resistance (>1000 hours)
Durable construction with a brass (chrome plated) shell and nickel plated brass latch components
Fixed panel front mount design for space-efficient integration
Applications:
High-voltage test equipment
Medical and analytical instrumentation
Industrial machinery and controls
Military and aerospace applications
Electrical Configuration
- Contact Termination High voltage
- Solder
- Insert configuration value
- 3S.410 - 1 High Voltage
- Insulator
- T: PTFE
- Rated current
- 10 Amps
- Test voltage (kV AC)
- 10.5
- Contact Type
- Solder
- Creepage distance
- 16.5 mm
- High Voltage
- 1
Form & Material
- Shell style / Model id
- ERA - Fixed receptacle, nut fixing
- Socket / Receptacle
- Fixed Panel Front Mounted
- Housing material
- Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces
- Locking system
- Push-pull
- Keying
- Circular, female
- Weight
- 28.54 g
Environment
- Technical domain
- Audio Video, Energy and Industrial, Semiconductor, Test and Measurement
- Environmental protection
- IP50
- Minimal temperature
- -55°C / +250°C
- Climatical Category
- 50/175/21
- Humidity (max)
- <=95% [at 60 deg C /140 F]
- Shielding (min)
- 75 dB (10 MHz)
- Shielding (min)
- 40 dB (1 GHz)
- Shock Resistance
- 100 g [ 6 ms]
- Vibration
- 15 g [10 Hz - 2000 Hz]
- Salt Spray Corrosion
- >1000 hr
Cable fixation
- Cable termination protection
- Standard back nut (no additional protection)
- Fixation type
- Cable collet
- Jacket cable outside diameter [mm]
- 2.00 - 16.60 mm
