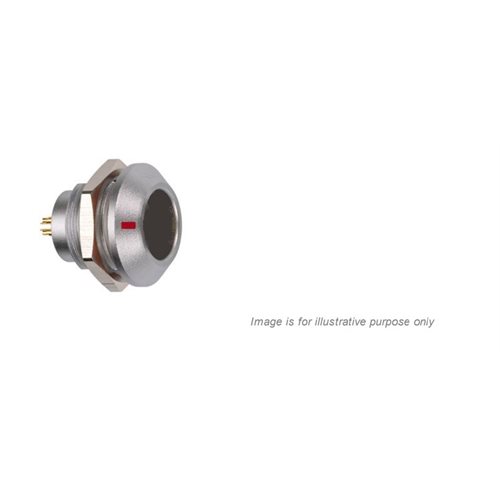

LEMO EGG.1K.250.CTL Panel Socket – High-Performance 50 Ohm Coaxial Connector

The LEMO EGG.1K.250.CTL is a premium-grade 50 Ohm coaxial panel socket engineered for demanding environments. Part of LEMO’s K Series Outdoor Keyed range, this connector is designed to deliver exceptional signal integrity, rugged durability, and secure push-pull locking for mission-critical applications.

Key Features:

Connector Type: Fixed panel socket (receptacle), front-mounted
Contact Configuration: 1 coaxial contact (50 Ohm)
Termination Method: Solder
Shell Material: Chrome-plated brass with nickel-plated brass mid pieces
Insulator: PTFE
Locking System: Push-pull
Keying: G (1 key, alpha = 0)
Environmental Sealing: IP68 rated
Temperature Range: -55°C to +200°C
Endurance: 5000 mating cycles
Shock & Vibration Resistance: 100 g shock, 15 g vibration (10 Hz – 2000 Hz)
Shielding Performance: 95 dB @ 10 MHz, 80 dB @ 1 GHz
Cable Compatibility: Jacket cable OD 1.00 – 14.60 mm

Applications:

This connector is ideal for use in:

Aerospace and Defense – Withstanding harsh conditions and ensuring reliable data transmission
Medical Equipment – Providing secure and clean signal paths
Industrial Automation – Supporting robust connectivity in high-vibration environments
Test & Measurement Systems – Ensuring precision and repeatability

Features

Data Sheet

Accessories

Accessories visible on product image are not included
