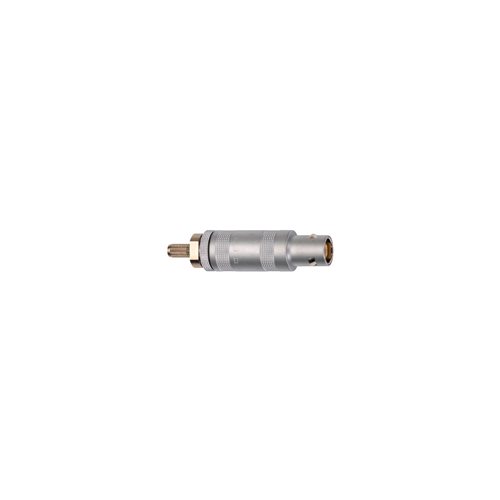

LEMO FFR.1S High Voltage Line Plug Crimp
The LEMO FFR.1S.408.CLAE46 excels in high-voltage applications, delivering exceptional power transmission within a remarkably compact, single-pin design .
Key Specifications:
Current Rating: 6 Amps
Test Voltage (AC): 12.7 kV
Space-Saving Single-Pin Configuration: Ideal for applications requiring a single high-voltage connection, optimizing real estate utilization.
Crimp cable attachment 4.0mm to 4.6mm OD
PEEK Insulator
Versatile Wire Compatibility: Accepts a wide range of wire sizes from AWG 30-22, accommodating diverse application needs.
Rear of connector must be protected ATUM
Targeted Applications:
High-voltage medical and analytical equipment
Industrial automation and control systems (single high-voltage line applications)
High-density test and measurement setups requiring individual high-voltage connections
Any application requiring a compact, high-voltage power connection in a limited space, where a single-pin configuration is preferred.
Electrical Configuration
- Contact Termination High voltage
- Solder
- Insert configuration value
- 1S.408 - 1 High Voltage
- Insulator
- L: PEEK (UL 94 / V-0/1.5)
- Rated current
- 6 Amps
- Rear of connector must be protected
- ATUM
- Test voltage (kV AC)
- 12.7
- Contact Type
- Solder
- Creepage distance
- 20.4 mm
- Contact Dia.
- 0.9
- High Voltage
- 1
- Wire Size/AWG
- 30 - 22
Form & Material
- Shell style / Model id
- FFR - Straight plug for cable crimping with safety ring
- Plug
- Straight
- Housing material
- Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces
- Locking system
- Push-pull
- Keying
- Circular, male
- Weight
- 13.56 g
Environment
- Technical domain
- Audio Video, Energy and Industrial, Semiconductor, Test and Measurement
- Environmental protection
- IP50
- Minimal temperature
- -55°C / +250°C
- Climatical Category
- 50/175/21
- Humidity (max)
- <=95% [at 60 deg C /140 F]
- Shielding (min)
- 75 dB (10 MHz)
- Shielding (min)
- 40 dB (1 GHz)
- Shock Resistance
- 100 g [ 6 ms]
- Vibration
- 15 g [10 Hz - 2000 Hz]
- Salt Spray Corrosion
- >144 hr
Cable fixation
- Cable termination protection
- Standard back nut (no additional protection)
- Fixation type
- Crimp
- Jacket cable outside diameter [mm]
- 4.00 - 4.60 mm
