Description
Key Features:
Single high-voltage contact with solder termination
12 A current rating and 10.5 kV AC test voltage
PTFE Insulator
Secure push-pull locking mechanism with circular keying for reliable connection
IP50 ingress protection and superior salt spray corrosion resistance (>1000 hours)
Durable construction with a brass (chrome plated) shell and nickel plated brass latch components
Fixed panel front mount design for space-efficient integration
Applications:
High-voltage test equipment
Medical and analytical instrumentation
Industrial machinery and controls
Military and aerospace applications
Specs
Electrical Configuration
- Contact Termination High voltage
- Solder
- Insert configuration value
- 4S.410 - 1 High Voltage
- Insulator
- T: PTFE
- Rated current
- 12 Amps
- Test voltage (kV AC)
- 10.5
- Contact Type
- Solder
- High Voltage
- 1
Form & Material
- Shell style / Model id
- ERA - Fixed receptacle, nut fixing
- Socket / Receptacle
- Fixed Panel Front Mounted
- Housing material
- Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces
- Locking system
- Push-pull
- Keying
- Circular, female
- Weight
- 70.74 g
Environment
- Technical domain
- Audio Video, Energy and Industrial, Semiconductor, Test and Measurement
- Environmental protection
- IP50
- Minimal temperature
- -55°C / +250°C
- Climatical Category
- 50/175/21
- Humidity (max)
- <=95% [at 60 deg C /140 F]
- Shielding (min)
- 75 dB (10 MHz)
- Shielding (min)
- 40 dB (1 GHz)
- Shock Resistance
- 100 g [ 6 ms]
- Vibration
- 15 g [10 Hz - 2000 Hz]
- Salt Spray Corrosion
- >1000 hr
Cable fixation
- Cable termination protection
- Standard back nut (no additional protection)
- Fixation type
- Cable collet
- Jacket cable outside diameter [mm]
- 3.00 - 23.60 mm
Accessories
Shipping
If you wish to purchase in store, to avoid disappointment, please confirm the availability of the product at your local John Barry prior to visiting.
Alternatively, orders placed online by 2pm AEST are typically dispatched same day, if ordered online.
If your product is on backorder, please contact us for an ETA.
Shipping is done via Startrack Express or Australia Post eParcel service and tracking advice will be provided once shipped.
For more information, please visit our Shipping Policy.
Warranty
Should you have any questions regarding our equipment warranty conditions, please contact us
Returns & Refunds
John Barry reserves the right under Australian Consumer Law to refuse a request for an exchange or refund on all final sale items, if you have misused/mishandled the product, or if you have simply changed your mind. Please visit our Refunds & Returns policy page for further information.

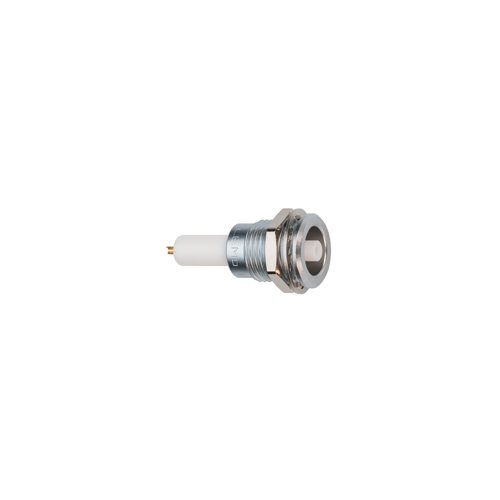

LEMO ERA.4S High Voltage Panel Socket (Epoxy Potted)
Product code : LEM.ERA4S410CTL
- Availability: In Stock Order before 2pm - Dispatch same day
