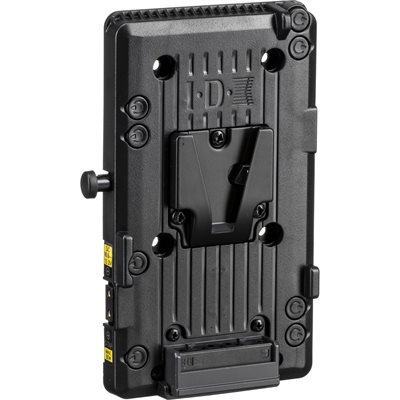

IDX P-V212 ENDURA V-Mount Plate w / 2 Pin D-Tap DC out & Digi-View
Press and move to zoom
Mouse over image to zoom

IDX P-V212 ENDURA V-Mount Plate w / 2 Pin D-Tap DC out & Digi-View


Product code : IDX.P-V212

$ 325.00
    • Availability: Out of Stock Call for a delivery estimate

Tell a Friend

As a variation of the popular P-V2 Plate series, the P-V212 provides to the 12VDC output and includes dual D-Taps – one positioned on each side: one 2-Pin D-Tap for regulated 12VDC output and a second D-Tap for unregulated battery throughput (lights, HDD recorder, etc.).

View Instruction Manual

  • Allows direct mounting of IDX Endura Batteries to the back of a wide range of professional 12V cinema cameras (i.e. select Sony, AJA, Panasonic, JVC & Ikegami cameras)
  • (1) 50W D-Tap Output (unregulated) available for powering cameras, onboard recorders, lights, monitors, ect.
  • (1) 36W D-Tap Output (regulated 12V) available for powering select cameras(can be combined with IDX C-PIN cable to power Sony PMW-EX1/EX3 Series Cameras)
  • Able to be mounted onto the IDX A-CP(A) or any other mounting plates on industry standard rail systems
  • Multiple mounting holes for universal camera connection
  • Digital battery capacity data from the ENDURA ELITE and E-HL9 can be transferred through the P-V2 to compatible viewfinders found in most cameras. For accuracy and detail, remaining capacity is shown in steps of 1%
  • Precise tooling and high-grade components enhance a design that offers a secure lock onto the battery for an exact fit connecting the mount’s power terminals
  • Pre-wired power connectors fitted as standard, eliminating the need for manual screw connection
Maximum D-Tap Output (primary) 12V regulated: 50W
Maximum D-Tap Output (secondary)  12~16.8V unregulated: 50W
Dimensions  82(W) x 142(H) x 12(D) inch.
Weight 181 grams approx.
Included Accessories M3 x 8 screws (qty. 4)
Accessories visible on product image are not included
