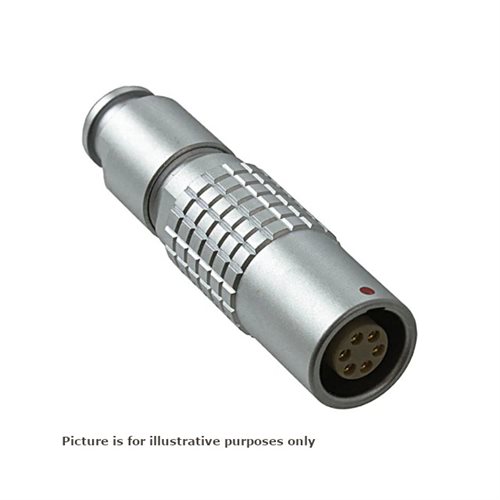

LEMO PHJ.1B.306.CWAD52Z Line Connector – High-Performance Push-Pull Connector for Demanding Applications

Looking for a compact, high-reliability connector for industrial, medical, or broadcast applications?The LEMO PHJ.1B.306.CWAD52Z is a premium-grade6-pin circular push-pull connector engineered for secure, high-integrityconnections in demanding environments.

Key Features

• Connector Type: Straight Reverse Gender Cable Socket, male pins, solder termination
• Shell Size: 1B Series
• Keying: J Keyway
• Contact Configuration: 6 (4+2)low-voltage contacts
• Cable Compatibility: Fits cable outer diameters from 4.2mm to 5.2mm
• Locking System: Patented Push-Pull self-latching mechanism for secure mating
• Shielding: 360° EMI shielding (up to 75 dB @ 10 MHz)
• Ingress Protection: IP50 rated – dust protected
• Durability: Rated for 5,000 mating cycles
• Accepts a strain relief sleeve for added cable security

Built for Performance

Crafted from chrome-plated brass, the PHJ.1B.306.CWAD52Z offers exceptional mechanical strength and corrosion resistance.Its compact design and ergonomic push-pull interface make it ideal for high-density installations and frequent use.

Applications

• This mates with the Red Epic Camera DC IN (Power Input) connector.

As the official LEMO distributor in Australia, John Barry Group offers expert advice, fast delivery, and full support for thePHJ.1B.306.CWAD52Z and other LEMO connector solutions. Need help choosing the right cable size or strain relief sleeve? Our team is here to assist.
