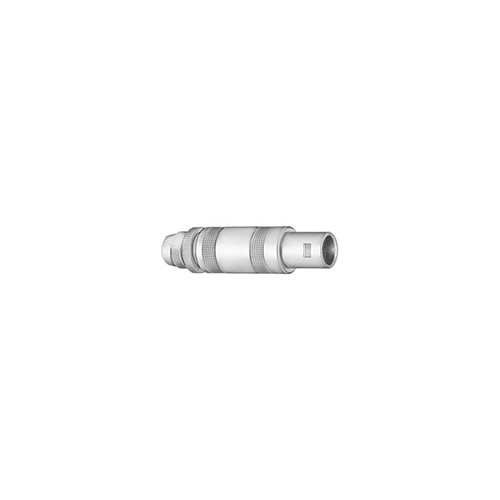

LEMO FFB.0S Hight Voltage Line Plug
The LEMO FFB.0S.403.CTAC44 excels in high-voltage applications, delivering exceptional power transmission within a remarkably compact, single-pin design featuring a secure locking back nut for enhanced reliability.
Key Specifications:
Current Rating: 4 Amps
Test Voltage (AC): 4.2 kV
Space-Saving Single-Pin Configuration: Ideal for applications requiring a single high-voltage connection, optimizing real estate utilization.
Secure Locking Back Nut: Guarantees a robust and vibration-resistant connection through a user-friendly locking mechanism, minimizing the risk of accidental disconnects.
PTFE Insulator: Ensures exceptional chemical resistance and high-temperature performance for reliable operation in challenging environments.
Versatile Wire Compatibility: Accepts a wide range of wire sizes from AWG 30-22, accommodating diverse application needs.
Targeted Applications:
High-voltage medical and analytical equipment
Industrial automation and control systems (single high-voltage line applications)
High-density test and measurement setups requiring individual high-voltage connections
Any application requiring a compact, high-voltage power connection in a limited space, where a single-pin configuration is preferred.
Electrical Configuration
- Contact Termination High voltage
- Solder
- Insert configuration value
- 0S.403 - 1 High Voltage
- Insulator
- T: PTFE
- Rated current
- 4 Amps
- Test voltage (kV AC)
- 4.2
- Contact Type
- Solder
- Air clearance
- 6.8 mm
- Creepage distance
- 7 mm
- Contact Dia.
- 0.9
- High Voltage
- 1
- Wire Size/AWG
- 30 - 22
Form & Material
- Shell style / Model id
- FFB - Straight plug, cable collet and safety locking ring
- Plug
- Straight
- Housing material
- Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces
- Locking system
- Push-pull
- Keying
- Circular, male
- Weight
- 8.44 g
Environment
- Technical domain
- Audio Video, Energy and Industrial, Semiconductor, Test and Measurement
- Environmental protection
- IP50
- Minimal temperature
- -55°C / +250°C
- Climatical Category
- 50/175/21
- Humidity (max)
- <=95% [at 60 deg C /140 F]
- Shielding (min)
- 75 dB (10 MHz)
- Shielding (min)
- 40 dB (1 GHz)
- Shock Resistance
- 100 g [ 6 ms]
- Vibration
- 15 g [10 Hz - 2000 Hz]
- Salt Spray Corrosion
- >144 hr
Cable fixation
- Cable termination protection
- Standard back nut (no additional protection)
- Fixation type
- Cable collet
- Jacket cable outside diameter [mm]
- 3.80 - 4.40 mm
