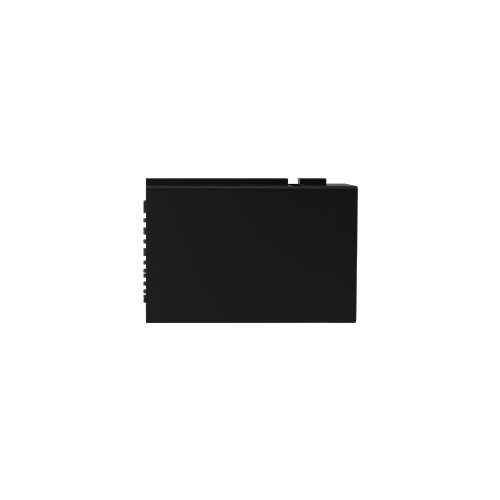

REDEL MOF.M17 MP Series 17 Pin Female Crimp Module
Press and move to zoom
Mouse over image to zoom
Click to Enlarge

Description

The REDEL MOF.M17.ZLM2 is a 17 pin crimp version female module.

Specs

Electrical Configuration

Contact Termination Low voltage
Crimp
Insert configuration value
MO/M17 - 17 Low Voltage
Insulator
L: PEEK (UL 94 / V-0/1.5)
Rated current
3 A
Vtest (contact-contact)
1270 V (DC)
Vtest (contact-shell)
n.a.
Max. Stranded Conductor
0.382 mm^2 (AWG 22)
Air clearance
1.07 mm
Creepage distance
1.07 mm
Bucket Dia.
0.8
Contact Dia.
0.7
Number of contacts Low Voltage
17
Wire Size/AWG
26 - 22
Gender
Standard

Form & Material

Shell style / Model id
MOF - Module double Low Voltage with Female crimp contacts
Weight
3.67 g

Environment

Technical domain
Energy and Industrial, Medical, Test and Measurement
Environmental sealing (IP rating)
IP50

REDEL MOF.M17 MP Series 17 Pin Female Crimp Module

LEMO Connectors

Product code : RED.MOFM17ZLM2

$ 120.56
  • Availability: Out of Stock Call for a delivery estimate
