Description

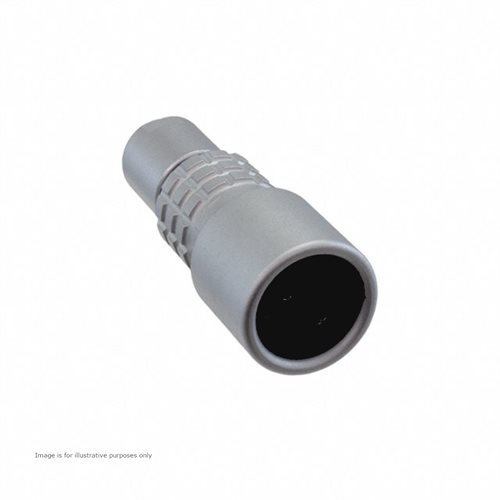

The PCA.2E.650.CTLC70 50 Ohm Triaxial line socket has been specifically designed for outdoor applications. It includes an inner sleeve and seals to prevent penetration of solids or liquids. The series is watertight when mated to give a protection index of IP68 as per IEC60529 standard.

The PCA.2E.650.CTLC70 takes a cable OD of 6.6mm to 7.0mm.

Please contact one of our LEMO consultants for other configurations.

Promotional Prices

If promotional pricing has been applied be advised it only applies to current stock & until stock lasts.

Features

Data Sheet

Specs

Specifications

Brand	LEMO
Series	2E
Gender	Cable Socket
Contacts	1
Contact plating	Gold
Rated current	12 A
Vtest (AC)	1200
Vtest (DC)	1690
Impedance	50 Ohm (Triax)
IP rating	IP68 (unmated)
Operating Temp	-55 °C to +200 °C
Compliance	RoHS
