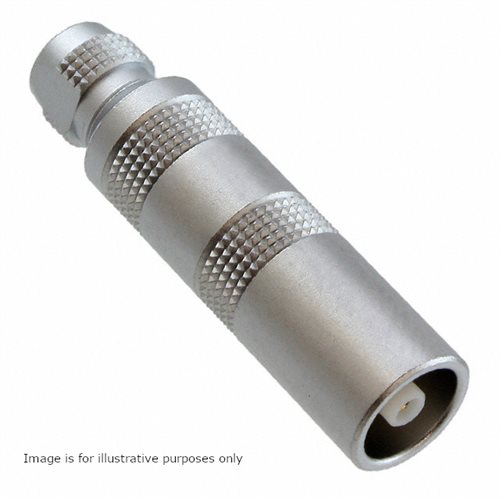

The PCA.2S.408.CTLC32 High Voltage Line Connector is the epitome of reliability and performance in the world of connectors. Engineered to excel in even the most demanding environments, this cutting-edge connector is your solution for seamless connectivity.

Its robust construction and LEMO push-pull design ensure superior signal integrity and exceptional durability. Used in many industries including industrial automation, medical, motion picture capture this connector is built to withstand the rigors of daily use.

The PCA.2S.408.CTLC32 guarantees effortless mating and secure connections. Its configuration offers optimal electrical performance, allowing for seamless transmission of data, power, and signals. You can trust this connector to maintain uninterrupted communication, ensuring your systems operate flawlessly.

The PCA.2S.408.CTLC32 Line Connector has a maximum current rating of 10A, with a test voltage of 12kV DC is designed to fit a cable OD of 2.5mm to 3.2mm.

Please contact our LEMO consultant for further information on other variations.

Specs

Electrical Configuration

Contact Termination High voltage: Solder

Insert configuration value: 2S.408 - 1 High Voltage

Insulator: T: PTFE

Rated current: 10 Amps

Test voltage (kV AC): 8.5

Contact Type: Solder

Air clearance: 11.5 mm

Creepage distance: 11.9 mm

Contact Dia.: 2

High Voltage: 1

Wire Size/AWG: 22 - 14

Form & Material

Shell style / Model id: PCA - Free receptacle, cable collet

Socket / Receptacle: Free

Housing material: Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces

Locking system: Push-pull

Keying: Circular, female

Weight: 38.76 g

Environment

Technical domain: Audio Video, Energy and Industrial, Semiconductor, Test and Measurement

Environmental protection: IP50

Minimal temperature: -55°C / +250°C

Climatical Category: 50/175/21

Humidity (max): <=95% [at 60 deg C /140 F]

Shielding (min): 75 dB (10 MHz)

Shielding (min): 40 dB (1 GHz)

Shock Resistance: 100 g [ 6 ms]

Vibration: 15 g [10 Hz - 2000 Hz]

Salt Spray Corrosion: >144 hr

Cable fixation

Cable termination protection: Standard back nut (no additional protection)

Fixation type: Cable collet

Jacket cable outside diameter [mm]: 2.50 - 3.20 mm
