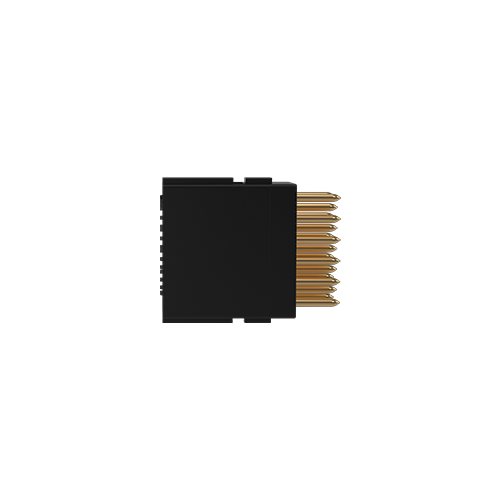

REDEL MOM.M17 MP Series 17 Pin Male Crimp Module Smaller Bucket
Press and move to zoom
Mouse over image to zoom
Click to Enlarge

Description

The REDEL MOM.M17.ZLB2 is a 17 pin male crimp version module with smaller crimp buckets.

Specs

Electrical Configuration

Contact Termination Low voltage
Crimp
Insert configuration value
MO/M17 - 17 Low Voltage
Insulator
L: PEEK (UL 94 / V-0/1.5)
Rated current
3 A
Vtest (contact-contact)
1270 V (DC)
Vtest (contact-shell)
n.a.
Max. Stranded Conductor
0.092 mm^2 (AWG 28)
Air clearance
1.07 mm
Creepage distance
1.07 mm
Bucket Dia.
0.45
Contact Dia.
0.7
Number of contacts Low Voltage
17
Wire Size/AWG
32 - 28
Gender
Standard

Form & Material

Shell style / Model id
MOM - Module double Low Voltage with Male crimp contacts
Weight
1.6 g

Environment

Technical domain
Energy and Industrial, Medical, Test and Measurement
Environmental sealing (IP rating)
IP50

REDEL MOM.M17 MP Series 17 Pin Male Crimp Module Smaller Bucket

LEMO Connectors

Product code : RED.MOMM17ZLB2

$ 57.42
  • Availability: Out of Stock Call for a delivery estimate
