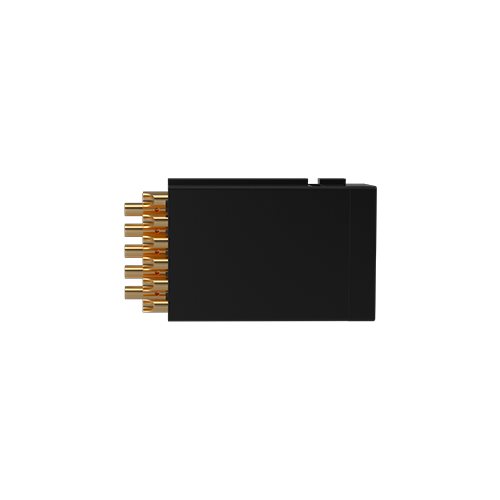

REDEL MOF.M17 MP Series 17 Pin Female Solder Module
Press and move to zoom
Mouse over image to zoom
Click to Enlarge

Description

The REDEL MOF.M17.ZLL2 is a 17 pin solder version female module.

Specs

Electrical Configuration

Contact Termination Low voltage
Solder
Insert configuration value
MO/M17 - 17 Low Voltage
Insulator
L: PEEK (UL 94 / V-0/1.5)
Rated current
3 A
Vtest (contact-contact)
1000 V (DC)
Vtest (contact-shell)
n.a.
Max. Solid Conductor
0.34 mm^2 (AWG 22)
Max. Stranded Conductor
0.34 mm^2 (AWG 22)
Air clearance
0.59 mm
Creepage distance
0.59 mm
Bucket Dia.
0.8
Contact Dia.
0.7
Number of contacts Low Voltage
17
Gender
Standard

Form & Material

Shell style / Model id
MOF - Module double Low Voltage with Female solder contacts
Weight
2.75 g

Environment

Technical domain
Energy and Industrial, Medical, Test and Measurement
Environmental sealing (IP rating)
IP50

REDEL MOF.M17 MP Series 17 Pin Female Solder Module

LEMO Connectors

Product code : RED.MOFM17ZLL2

$ 126.72
  • Availability: Out of Stock Call for a delivery estimate
