Electrical Configuration

Contact Termination Low voltage

Solder

Insert configuration value

MO/M06 - 6 Low Voltage

Insulator

L: PEEK (UL 94 / V-0/1.5)

Rated current

4 A

Vtest (contact-contact)

1280 V (DC)

Vtest (contact-shell)

n.a.

Max. Solid Conductor

0.34 mm^2 (AWG 22)

Max. Stranded Conductor

0.34 mm^2 (AWG 22)

Air clearance

0.65 mm

Creepage distance

0.65 mm

Bucket Dia.

0.8

Contact Dia.

0.7

Number of contacts Low Voltage

6

Gender

Standard

Form & Material

Shell style / Model id

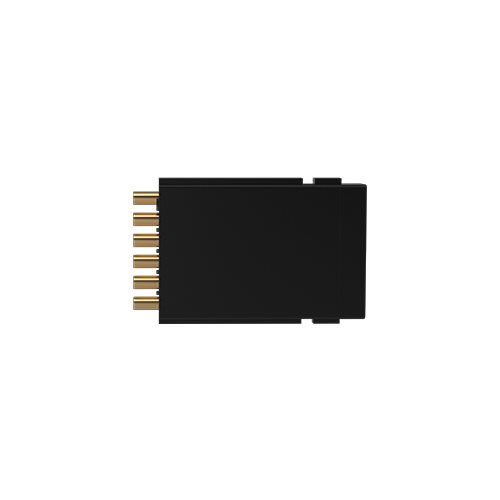

MOF - Module single Low Voltage with Female solder contacts

Weight

1.16 g

Environment

Technical domain

Energy and Industrial, Medical, Test and Measurement

Environmental sealing (IP rating)

IP50
