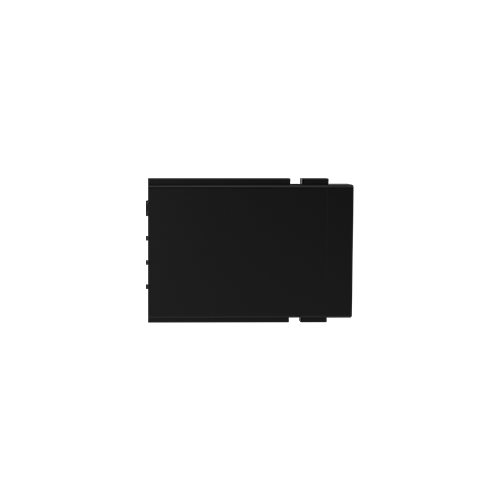

REDEL MOF.M05 MP Series 5 Pin Female Crimp Module
Press and move to zoom
Mouse over image to zoom
Click to Enlarge

Description

The REDEL MOF.M05.ZLM1 is a 5 pin crimp version female module.

Specs

Electrical Configuration

Contact Termination Low voltage
Crimp
Insert configuration value
MO/M05 - 5 Low Voltage
Insulator
L: PEEK (UL 94 / V-0/1.5)
Rated current
4.5 A
Vtest (contact-contact)
2000 V (DC)
Vtest (contact-shell)
n.a.
Max. Stranded Conductor
0.616 mm^2 (AWG 20)
Air clearance
1.17 mm
Creepage distance
1.17 mm
Bucket Dia.
1.1
Contact Dia.
0.9
Number of contacts Low Voltage
5
Wire Size/AWG
24 - 20
Gender
Standard

Form & Material

Shell style / Model id
MOF - Module single Low Voltage with Female crimp contacts
Weight
2.7 g

Environment

Technical domain
Energy and Industrial, Medical, Test and Measurement
Environmental sealing (IP rating)
IP50

REDEL MOF.M05 MP Series 5 Pin Female Crimp Module

LEMO Connectors

Product code : RED.MOFM05ZLM1

$ 43.56
  • Availability: Out of Stock Call for a delivery estimate
