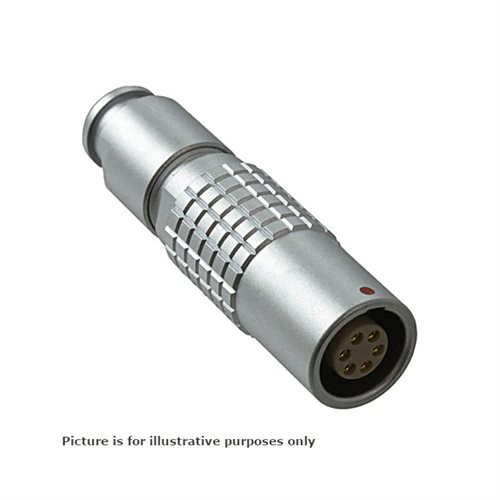

LEMO PHG.1B.303.CLLD42Z Line Connector – High-Performance Push-Pull Connector for Demanding Applications

Looking for a compact, high-reliability connector for industrial, medical, or broadcast applications?The LEMO PHG.1B.303.CLLD42Z is a premium-grade3-pin circular push-pull connector engineered for secure, high-integrityconnections in demanding environments.

Key Features

• Connector Type: Straight Cable Socket, female pins, solder termination
• Shell Size: 1B Series
• Keying: G Keyway
• Contact Configuration: 3 low-voltage contacts
• Cable Compatibility: Fits cable outer diameters from 3.1mm to 4.2mm
• Locking System: Patented Push-Pull self-latching mechanism for secure mating
• Shielding: 360° EMI shielding (up to 75 dB @ 10 MHz)
• Ingress Protection: IP50 rated – dust protected
• Durability: Rated for 5,000 mating cycles
• Accepts a strain relief sleeve for added cable security

Built for Performance

Crafted from chrome-plated brass, the PHG.1B.303.CLLD42Z offers exceptional mechanical strength and corrosion resistance.Its compact design and ergonomic push-pull interface make it ideal for high-density installations and frequent use.

Applications

This connector is trusted across industries for its reliability and precision:

• Medical Devices – Electrosurgical tools, imaging systems, and monitoring equipment
• Industrial Automation – Sensors, actuators, and control systems
• Broadcast & Film – Camera rigs, audio interfaces, and power distribution
• Test & Measurement – Lab instrumentation and data acquisition systems

As the official LEMO distributor in Australia, John Barry Group offers expert advice, fast delivery, and full support for thePHG.1B.303.CLLD42Z and other LEMO connector solutions. Need help choosing the right cable size or strain relief sleeve? Our team is here to assist.
