Electrical Configuration

Insulator

L: PEEK (UL 94 / V-0/1.5)

Gender

Standard

Form & Material

Shell style / Model id

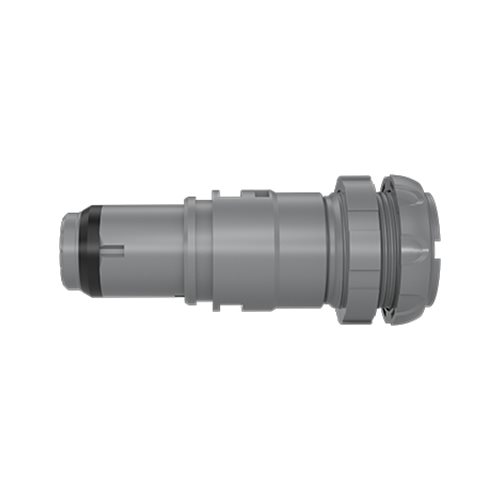

MT - Fixed cable socket, key (N) or keys (P, S and T), cable fixing, with backnut for fitting a bend relief, with two nuts (back panel mounting)

Socket / Receptacle

Fixed Panel Rear Mounted

Housing material

Proprietary sulfone, grey

Locking system

Push-pull

Keying

3 keys (alpha=0, gamma=30, plug: male contacts, receptacle: female contacts)

Variant

Grey backnut for bend relief and front nut

Weight

13.79 g

Environment

Technical domain

Energy and Industrial, Medical, Test and Measurement

Environmental sealing (IP rating)

IP50

Endurance

>2000 mating cycles

Temperature range

-50°C / +170°C

Cable fixation

Cable termination protection

For cable bend relief

Fixation type

Cable collet or cable adaptor (to be ordered separately)
