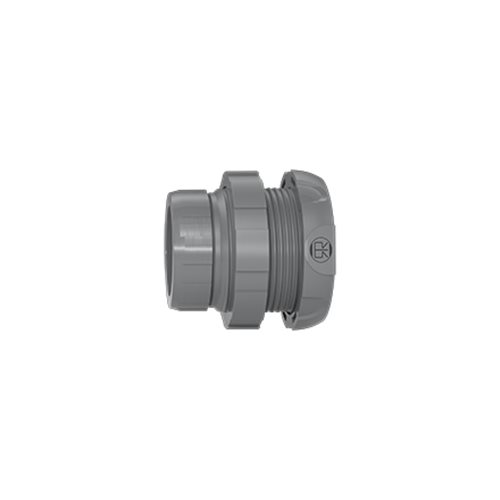

- REDEL MLN.V04 MP Series Panel Socket N Keyway
Description
The REDEL MLN.V04.GEZG is a Fixed Panel front mounted socket shell.
Specs
Electrical Configuration
- Insulator
- L: PEEK (UL 94 / V-0/1.5)
- Gender
- Standard
Form & Material
- Shell style / Model id
- ML - Socket, key (N) or keys (P, S and T), nut fixing
- Socket / Receptacle
- Fixed Panel Front Mounted
- Housing material
- Proprietary sulfone, grey
- Locking system
- Push-pull
- Keying
- 3 keys (alpha=0, gamma=30, plug: male contacts, receptacle: female contacts)
- Variant
- Grey front flange
- Weight
- 13.45 g
Environment
- Technical domain
- Energy and Industrial, Medical, Test and Measurement
- Environmental sealing (IP rating)
- IP50
- Endurance
- >2000 mating cycles
- Temperature range
- -50°C / +170°C
REDEL MLN.V04 MP Series Panel Socket N Keyway
Product code : RED.MLNV04GEZG
$ 29.92
- Availability: In Stock Order before 2pm - Dispatch same day
