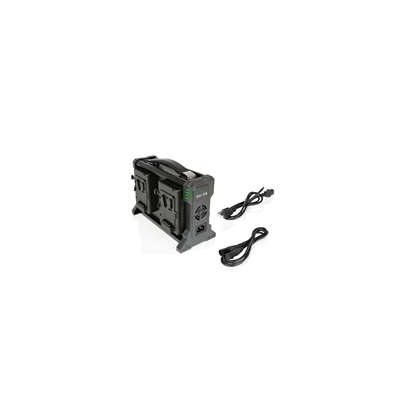

SHAPE INTELLIGENT 4-CHANNEL V-MOUNT LITHIUM-ION BATTERY CHARGER
SHAPE INTELLIGENT 4-CHANNEL V-MOUNT LITHIUM-ION BATTERY ChargerThe new fast-charge SHAPE Intelligent 4-Channel V-Mount Lithium-Ion Battery Charger is an ideal match for the SHAPE FULL PLAY Batteries. It provides simultaneous charging for up to four batteries and can also be used as an AC Power Supply which delivers 2.5A of power per channel.
Additionally, the charger supports 100-240V power input, so it can be used worldwide with the right plug adapters. It also includes a 4-pin XLR male and female cable for the AC port, providing up to 4A of current at 15V to power other devices. You can select the charger's mode using the three-position switch. The unit also features a handle for easy carrying for productions on the go and indicator lights to keep you appraised on the battery charge status.
Plug the power cable into the charger.
Slide the battery that requires charging onto the charger, ensuring the V-Mount studs are aligned in the corresponding slots. The battery is fully engaged when the latch makes an audible “click” sound.
Turn on the charging switch on the charger and the indicator light will turn red. The charger will begin charging the battery automatically.
When the indicator light turns orange, the charging is almost finished.
When the indicator light turns green, the charging is completely finished.
Remove the battery by depressing the latch and sliding the battery off the charger. Turn off the charger.
Plug the 4-pin XLR cable into the charger.
Turn on the adapter switch. When the indicator light turns red, the charger will begin charging the device automatically
