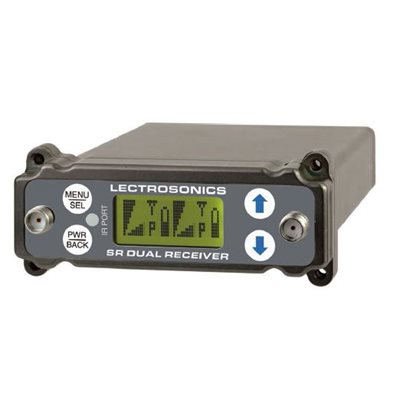

Lectrosonics SRc Dual-Channel Slot-Mount ENG Receiver B1: 537.600 to 614.375 MHz

Product code : LEC.SRC/B1



$ 5,187.00
    • Each
    • Availability: Out of Stock Call for a delivery estimate

Tell a Friend

Lectrosonics SRc Dual-Channel Slot-Mount ENG Receiver B1: 537.600 to 614.375 MHz


Lectrosonics Dual-Channel ENG Wideband Receiver

  • Fits camera “slots,” Lectrosonics Duopack adapter and Octopack multicoupler, and operates stand-alone with various adapters
  • Tunes over a 75 MHz range* (3 blocks)
  • Dual receiver design for two channels with phase switched diversity or single channel with ratio diversity operation
  • Digital Hybrid Wireless® with compatibility modes for use with other transmitters
  • Tracking front-end filters for high performance in tough RF environments
  • LCD with RF spectrum scanning
  • SmartSquelchTM DSP-controlled, noise based filtering and squelch
  • DSP-based pilot tone for squelch control
  • IR sync port for quick transmitter setup (LMb, LT, HHa, HMa, & SSM)
  • SmartTune operation for quick and confident frequency selection



The SRc consists of two separate receivers built into a single, ultra compact housing with adapters for video camera receiver slots and for stand-alone use. Digital Hybrid Wireless® technology provides superb, compandor-free audio quality and compatibility with other wireless systems. The RF performance is extremely stable over a very wide temperature range, making the receiver perfectly suited to the rough environmental conditions found in field production



DSP compatibility modes allow the receiver to be used with a variety of Lectrosonics systems, other brands of wireless systems and with Lectrosonics IFB transmitters



These new Digital Hybrid Wireless dual-channel diversity slot receivers include a wide tuning range of three standard Lectrosonics blocks or 76 MHz. Tuning steps of 100 kHz or 25 kHz allow for up to 3072 frequencies per band. Tracking front-end filters provide excellent out-of-band rejection of RF noise, making the receivers ideal performers in extreme RF conditions.  And DSP compatibility modes allow the receivers to be used with a variety of Lectrosonics systems, including the IFB transmitters, as well as a variety of other wireless systems. An IR (infrared) port is included to simplify setup with IR enabled transmitters



The SmartTune feature quickly and automatically selects frequencies based on local scan data. Audio frequency response: 40 Hz - 20 kHz +- 1dB



Three frequency ranges are available for use in Australia:

B1 (537-614 MHz or blocks 21, 22 and 23)

B2 (563-640 MHz or blocks 22, 23 and 24)

C1 (614-691 MHz or blocks 24, 25 and 26)

For Camera Slots and Various Adapters
Dual-Receiver Design for Two Channels
Tracking Front-End Filters
Tunes Over a 75 MHz Range
LCD with RF Spectrum Scanning
SmartSquelch DSP-Controlled
DSP-Based Pilot Tone
IR Sync Port for Quick Transmitter Setup
SmartTune Frequency Selection

Wireless Technology
Analog/Digital Hybrid UHF

Diversity
Ratio Diversity, Smart Diversity

Receiver Type
Slot-Mount

Number of Audio Channels
2

Power Requirements
AC/DC Power Adapter, Battery, DC Input

Number of RF Channel Frequencies
3072

Diversity
Ratio Diversity, Smart Diversity

RF Frequency Band
B1: 537.6 to 614.375 MHz

RF Bandwidth
76 MHz

Frequency Step Size
25 kHz
100 kHz

RF Channel Scanning
Auto-Scan

Receiver

Receiver Type
Slot-Mount

Mounting Options
Shoe-Mount, Slot-Mount, 1/4"-20 Female (with Optional Hardware)

Antenna
2 x Flexible Whip, SMA (Top-Mount)

Number of Audio Channels
2

Audio I/O
No

Slot-Mount I/O Adapters
Available Separately:
DB-25 (Uni/SuperSlot), DE-15/DB-15 (Sony Type), TA3/Mini XLR, TA5/Mini XLR

Gain Range
20 to 60 dB

Audio Output Level
-50 to +5 dB (Balanced)

Frequency Response
32 Hz to 20 kHz ±1 dB

Network I/O
No

Network Protocols
No

USB/Lightning Connectivity
No

Standalone Audio Interface Capable
No

Impedance
Antenna:
50 Ohms

RF Principle
Double Superheterodyne
Approximate RF Sensitivity
-107 dB / 1 µV
Squelch
100 dBm
Spurious
Rejection: 85 dB

Power Requirements
AC/DC Power Adapter, Battery, DC Input

Battery Type
2 x 9V (with Optional Equipment)
AC/DC Power Adapter
12 VDC at 3 A (Not Included)

DC Input Power
7 to 18 VDC
18 VDC at 145mA
7 VDC at 290mA

AC Input Power
100 to 240 VAC, 50 / 60 Hz

Display & Indicators
1 x LCD (Battery Status, Level, Power, RF Level, Sync, Transmitter Battery Status)

Operating Temperature
-4 to 122°F / -20 to 50°C

Dimensions
73.7 x 30.5 x 124.5 mm

Weight
198 g

Accessories visible on product image are not included
