Wireless Receiver Mounting Bracket

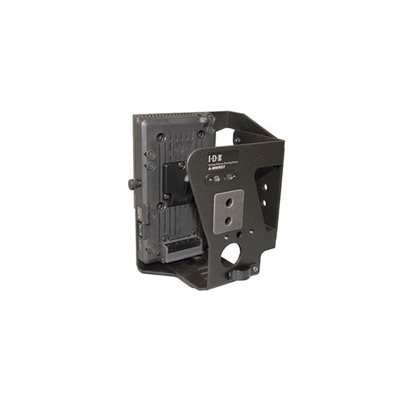

IDX Wireless Receiver Mounting Bracket

Wireless Receiver Mounting Bracket

Attaches directly to a V-Mount type camcorder without using screws; adjustable to four positions and allows PowerLink capability. Wireless receiver and HDD can be attached to either side of the bracket; D-Tap connector included. Fits most of professional cameras. Can also be attached to CW-5HD / CW-7 transmitter

Plate depth of the A-MWR57 is adjustable to accomodate all Endura batteries

Accessory equipment can be attached to either side of the bracket simultaneously. Rear panel can be removed if not being used

On one D-Tap  select between 5V or 7.3V output Max 3A can be selected for accessory equipment such as back-up recorder & I/F box etc via D Tap connector on right hand side.

Second D-Tap is 14V Max 50W output via D Tap on th eleft hand side of the bracket

For detailed information

Download A-MWR Instruction Manual  - click here
